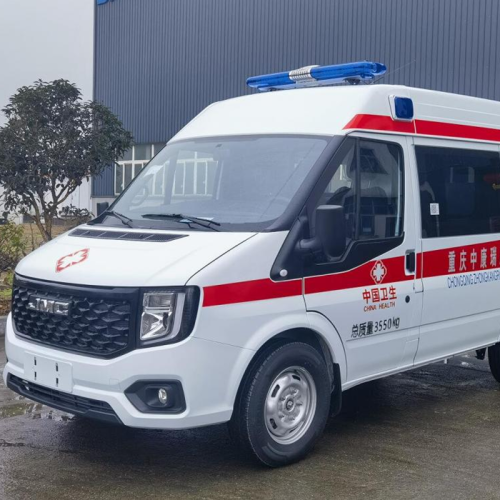

Jiangling Fushun Ambulance Model
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
Including facilities
The interior of modern ambulances is relatively spacious, providing sufficient space for ambulance personnel to provide medical assistance to patients on their way to the hospital. Modern ambulances also carry a large amount of bandages and topical products, which can help stop bleeding, clean wounds, and prevent infections.
The car also comes with clamps and brackets to fix the patient's broken limbs and prevent further damage to the patient's neck and spine. The car is also equipped with oxygen, portable respirators, and pacemakers and defibrillators. Most ambulances also come with patient monitors that can monitor the patient's pulse and breathing on the way to the emergency room. These detection data can be sent to the hospital via radio.
|
Technical parameters of the entire vehicle |
|||
|
product name |
ambulance |
Model |
|
|
Total mass (Kg) |
3550 |
Tank volume (m3) |
|
|
Rated load capacity (Kg) |
|
External dimensions (mm) |
5495x1974x2620 |
|
Curb weight (Kg) |
2490 |
Cargo compartment size (mm) |
xx |
|
Rated passenger capacity (person) |
6-8 |
Total mass of quasi trailer (Kg) |
|
|
Approach angle/departure angle (°) |
22/24 |
Front/rear suspension (mm) |
980/1155 |
|
Axle load (Kg) |
1490/2060 |
Maximum speed (km/h) |
160 |
|
notes |
The vehicle is equipped with medical equipment cabinets, oxygen cylinders, stretchers, disinfection lamps and other specialized rescue equipment, mainly used for emergency rescue and transportation of patients; ABS system controller model: 3550B500, manufacturer: Zhejiang Asia Pacific Electromechanical Co., Ltd. Optional ABS controller model and manufacturer: ESP9, Bosch Automotive Parts (Suzhou) Co., Ltd. Optional direct powered ETC onboard device; The car is equipped with an Automotive Event Data Recording (EDR) system. Different interiors are optional. Optional installation of different types of warning lights. |
||
|
Chassis technical parameters |
|||
|
Chassis Model |
JX6555T-M6 |
Chassis brand |
|
|
manufacturing enterprise |
Jiangling Motors Corporation, Ltd |
Address |
JX6555T-M6 whole vehicle Jiangling Automobile Co., Ltd |
|
number of axles |
2 |
Number of tires |
4 |
|
wheelbase |
3360 |
||
|
Tire Size |
215/75R16LT,215/75R16C |
||
|
Number of steel plate springs |
-/2 |
||
|
Front wheelbase (mm) |
1740 |
Rear wheelbase (mm) |
1708 |
|
fuel type |
diesel oil |
Emission standards |
GB17691-2018 National VI |
|
Engine model |
Engine Manufacturer |
Displacement (ml) |
Power (Kw) |
|
JX4D20A6H |
Jiangling Motors Corporation, Ltd |
2000 |
107 |
Chongqing Dike Automotive Technology Group Was Founded In September 2000. The Company Mainly Engages In Automotive Project Planning And Vehicle Research And Development, Manufacturing And Sales Of Intelligent Connected Special Vehicles, And Development And Application Of Intelligent Networking Technology. Dike Automobile Is One Of The Key Manufacturing And Service Enterprises In Chongqing, As Well As A High-Tech Enterprise, Specialized And Innovative Enterprise. It Has A Municipal Industrial Design Center And A Municipal Enterprise Technology Center. The Company Has Received Numerous Honors And Holds Over 100 Patents And Software Copyrights. After Years Of Hard Work, The Company Has Built An Industrial Chain For The Cross-Border Integration And Development Of The Automotive And Ict Industries, Forming An Industrial Chain System That Includes Research And Development Design, Production And Manufacturing, Sales And Operation, Smart Car Connectivity, And Application Software System Services.
The Team Of Dike Automotive Research Institute Is The First Private Automotive Research And Development Service Institution Established In China, With 24 Years Of Experience In Vehicle Research And Development, Providing Technical Support For Vehicle Research And Development To Multiple Well-Known Domestic Automotive Oems.
The Dico Automotive Team Adheres To The Principle Of "Personalized Customization And Precise Service", With 16 Years Of Manufacturing Experience, To Manufacture New Intelligent Connected Special Vehicles With A Good Experience For Customers.
The Marketing Team Of Dike Automobile Collaborates With Well-Known Domestic Automotive Companies Such As Changan Automobile, Qingling Automobile, China National Heavy Duty Truck, Beiqi Foton, Dongfeng Automobile, Jianghuai Automobile, Chery Automobile, Geely Automobile, China Crrc And Other Commercial Vehicle Companies To Build A Segmented Service Chain, Share Sales Networks, And Expand Domestic And Foreign Markets.
The Dike Automotive Intelligent Connected Team, Suppo
