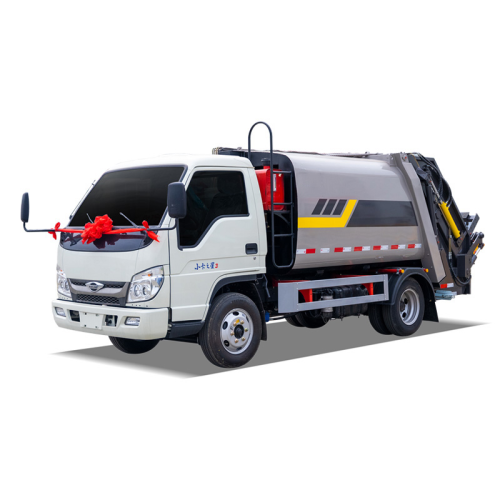

Foton Compact Garbage Truck
$8348.64 - $27828.80/Vehicle
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
Product Description
Product Description
● Simple garbage collection method: It changes the dirty and messy old appearance of garbage bins placed on the streets of the city, and eliminates secondary pollution.
High compression ratio and large loading capacity: The maximum crushing pressure reaches 12 tons, and the loading capacity is equivalent to twice and a half times that of non compressed garbage of the same ton level.
● Automation of homework: Using a computer control system, all filling and unloading operations require one driver to operate, and can be set to two operating modes: fully automatic and semi-automatic. This not only reduces the labor intensity of sanitation workers, but also greatly improves the working environment.
Good economy: When specialized equipment is in operation, the computer control system automatically controls the throttle.
● Dual insurance system: The operating system has dual functions of computer control and manual operation, greatly ensuring and improving the utilization rate of vehicles.
Flip mechanism: An optional flip mechanism with a garbage bin (or bucket) can be installed.
Project parameter notes
Vehicle model DKV5040ZYSB6, fourth generation new compression type
Wheelbase (mm) 2850
Tire size 6.50R16LT10PR steel wire tire
5-speed transmission
Engine model Q23-115C60 (all diesel 115) National VI emissions, diesel engine
Engine power (kW) 85KW
External dimensions [length x width x height (mm)] 5995 * 2090 * 2450
Maximum total mass (kg) 2850
Rated mass (kg 500
Curb weight (kg) 3865
Effective volume of the box (m3) 5
The three operation modes of electronic control, manual control, and remote control are all standard
One feed cycle time 12-25 seconds
Unloading time s25S
