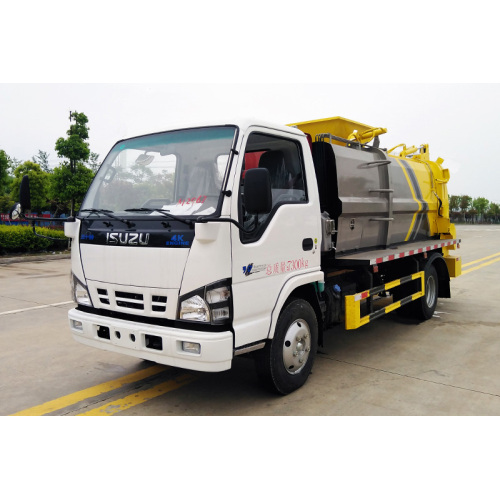

Isuzu 6m ³ Kitchen Waste Truck
$8340.18 - $27800.60/Vehicle
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
Product Description
Product Description
1. The appearance is beautiful and elegant
The transverse section of the garbage bin is a cylindrical frame, and the longitudinal section is a trapezoidal frame. Both sides and the top surface are in a circular arc shape, making the whole machine look beautiful and generous
2. Strong loading capacity
And it can achieve preliminary separation of kitchen waste oil and water inside the box and reduce waste volume, and is equipped with a large capacity sewage tank
3. The sealing between the garbage bin and the rear door assembly is good
A specially reinforced rubber strip is used between the garbage bin and the rear door assembly for good sealing, eliminating secondary pollution
4. Reliability and Safety
Adopting a combination of electrical and hydraulic control, and equipped with safety protection switches, ensuring accurate and reliable action of each mechanism
5. Automatic control of engine power output
The engine power output achieves fully automatic control. When not in operation, the engine is in idle state, and when in operation, the engine automatically accelerates to meet the requirements of operating power. It avoids power loss and system heating, reduces fuel consumption, and has good economy.
6. Strong mobility
The homework tank and platform are supported by a chassis, and any place where swill needs to be treated can be called upon by just one driver and one worker. Its mobile operation ability is good.
| category | project | Parameters or configurations |
| Vehicle parameters | Model | DKV5070TCAQ6 |
| External dimensions [length x width x height (mm)] | 6150*1950*2560.2690 | |
| Curb weight (kg | 45004700 | |
| Rated load capacity (kg) | 26,702,470 | |
| Maximum total mass (kg) | 7300 | |
| Rated members | 2 people | |
| Chassis parameters | Chassis Model | QL1070BUHACY |
| Chassis manufacturer | Qingling Motors Company Limited | |
| Engine model | 4KH1CN6LB | |
| Engine power (kW) | 88 | |
| Wheelbase (mm) | 3360/3815 | |
| tire | 7.00 steel wire tire | |
| Transmission | 5/6 | |
| Specialized parameters | Effective volume of tank (m3) | 6 |
| multi-way valve | Zhongmei/Weisenbole multi way valve | |
| oil pump | Anhui liquid oil pump | |
| hydro-cylinder | Weisenbole | |
| operating mode | Electric control/manual/remote control |
