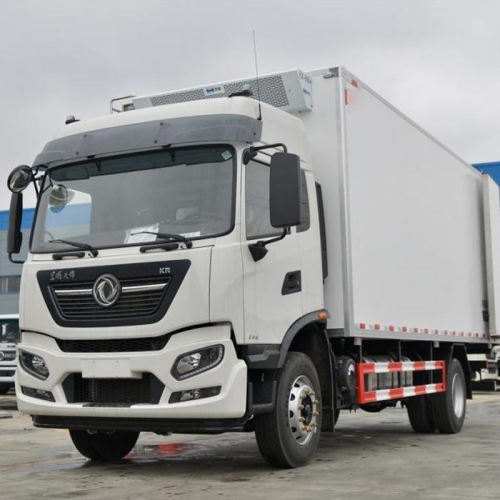

Refrigerated truck
The car body adopts the combination structure of full plastic and full closed composite material plates. The inner and outer skins are made of glass steel plate, and the middle interlayer is made of polyurethane foam heat insulation material. The four sides are bonded with high-strength adhesive to form a closed plate. When the car body is assembled, it is bonded with high-strength adhesive and fastened with embedded high-strength screws. The box car refrigeration unit can choose American King Freezer Internationally renowned brands such as French Kelly and Japanese Mitsubishi.
|
Technical parameters of the entire vehicle |
|||
|
Product trademark |
Dongfeng brand |
product name |
refrigerated truck |
|
Total mass (Kg) |
16000 |
|
|
|
Rated load capacity (Kg) |
8490,8425,7925,7990 |
外形尺寸(mm) |
8450,9000,9150x2600x3700,3750,3900,3950 |
|
External dimensions (mm) |
7380,7880 |
Cargo compartment size (mm) |
6080,6630,6800x2440x2450,2570 |
|
Rated passenger capacity (person) |
|
Total mass of quasi trailer (Kg) |
|
|
Approach angle/departure angle (°) |
14/11,14/10 |
Front/rear suspension (mm) |
1430/2320,1430/2570,1430/2720 |
|
Axle load (Kg) |
5600/10400 |
Maximum speed (km/h) |
89 |
|
notes |
Optional front fog lights with chassis, optional side window glass, optional cab front panel cover, optional rearview mirror photos; Optional air deflector on the top of the cab; Optional compartment structure; Optional box rivet structure; Optional fuel tank; The top of the compartment is closed and cannot be opened, with optional door opening and non door opening on the side; Optional side protection crossbar fixing method; Install air filter position, urea tank position, dryer position, and toolbox position along with the chassis; Optional installation of different urea tank structures; Optional refrigeration units with equivalent power from other manufacturers can be installed on this model, and ETC onboard devices can be selected. The optional tail plate has a mass of 550kg and a horizontal length of 295mm when the tail plate is folded up; When selecting the tail plate, only the cross-sectional size is selected Φ 121 rear protection, rear protection material: Q235, connection method: welding, ground height of 470mm; Side protection: material Q235, engineering plastic, bolted connection; Rear lower protection: material Q235, bolted connection, cross-sectional size 120 × 60mm, ground height 480mm, 460mm, 440mm; Install a driving recorder with satellite positioning function; ABS model and manufacturer: 3631010-C2000/Dongke Knorr Commercial Vehicle Brake System (Shiyan) Co., Ltd., J ABS/Jiaozuo Borek Control Technology Co., Ltd; The fuel consumption value corresponding to engine D4.0NS6B170 is 22.8L/100km, the fuel consumption value corresponding to engine D4.0NS6B185 is 22.8L/100km, and the fuel consumption value corresponding to engine DDi47E225-60 is 22.8L/100km. |
||
|
Chassis production enterprises |
Dongfeng Commercial Vehicle Co., Ltd |
Chassis brand |
Dongfeng brand |
|
number of axles |
2 |
Number of tires |
6 |
|
wheelbase |
4700,5000,4200 |
||
|
Tire Size |
9.00R20 16PR,10R22.5 16PR,10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR |
||
|
Number of steel plate springs |
11/10+8,8/10+8 |
||
|
Front wheelbase (mm) |
1826,1862,1815,1844,1855 |
Rear wheelbase (mm) |
1800 |
|
fuel type |
diesel oil |
Emission standards |
GB17691-2018 National VI |
|
Engine model |
Engine Manufacturer |
Displacement (ml) |
Power (Kw) |
|
D4.0NS6B185 |
Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd |
4000 |
136 |
