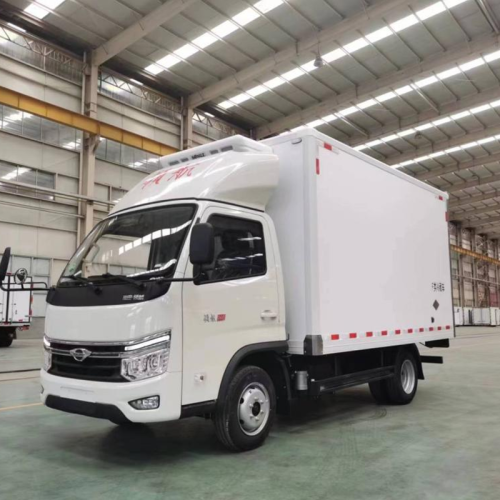

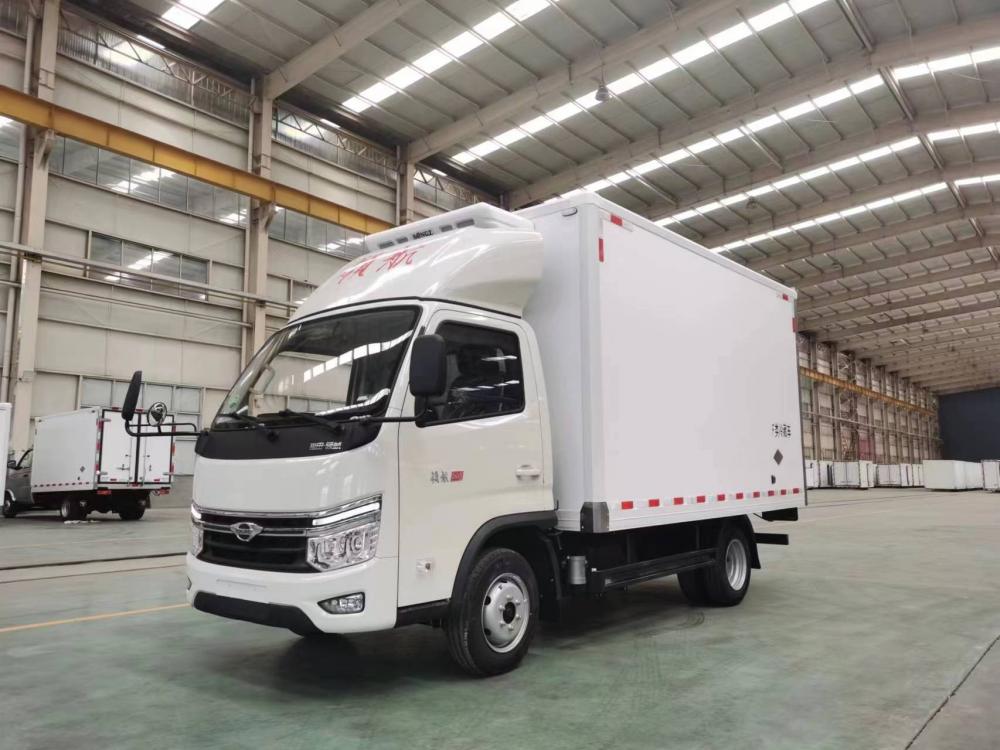

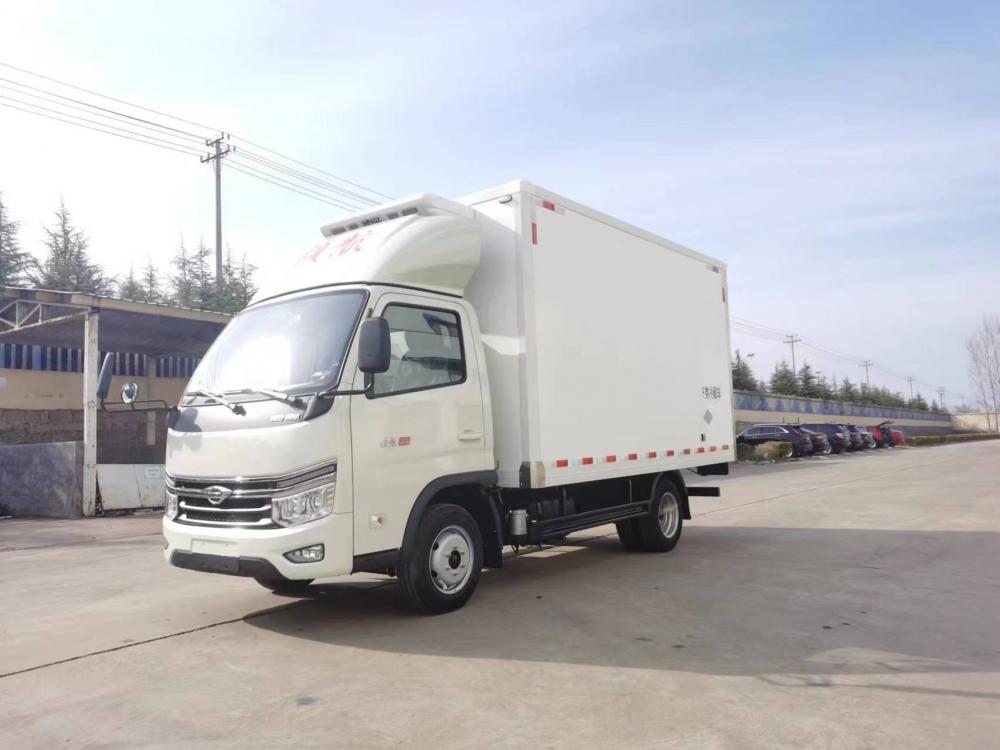

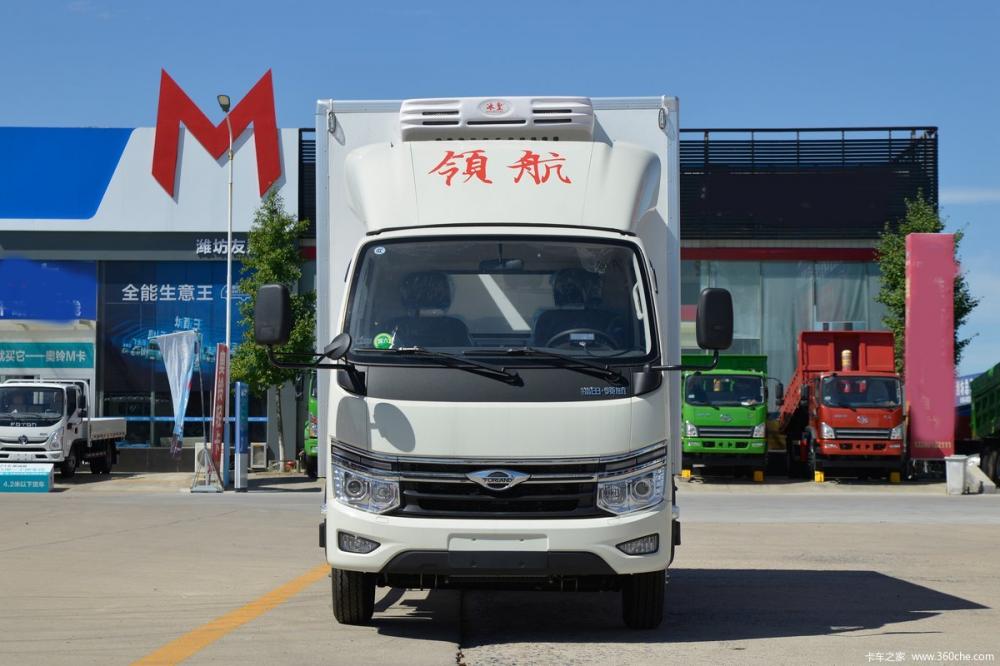

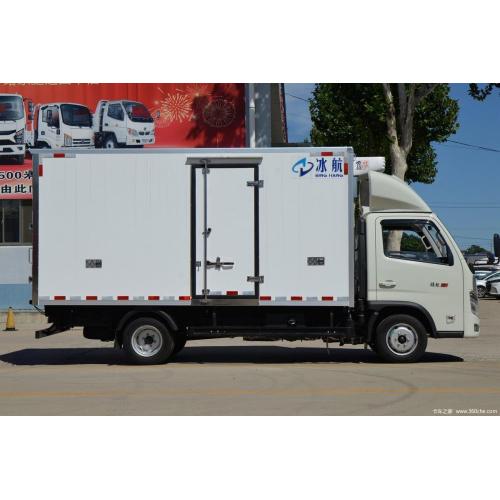

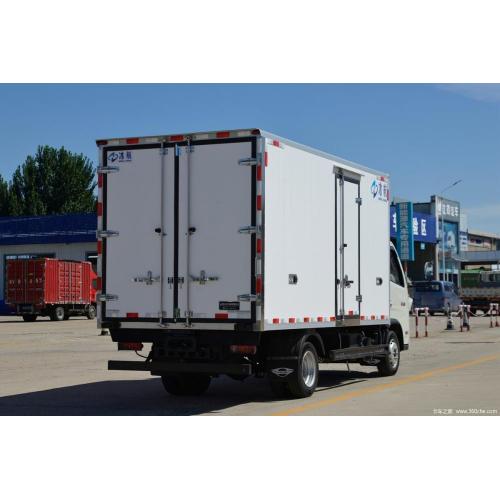

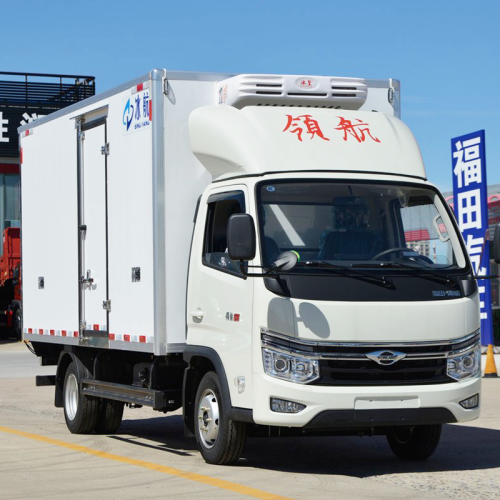

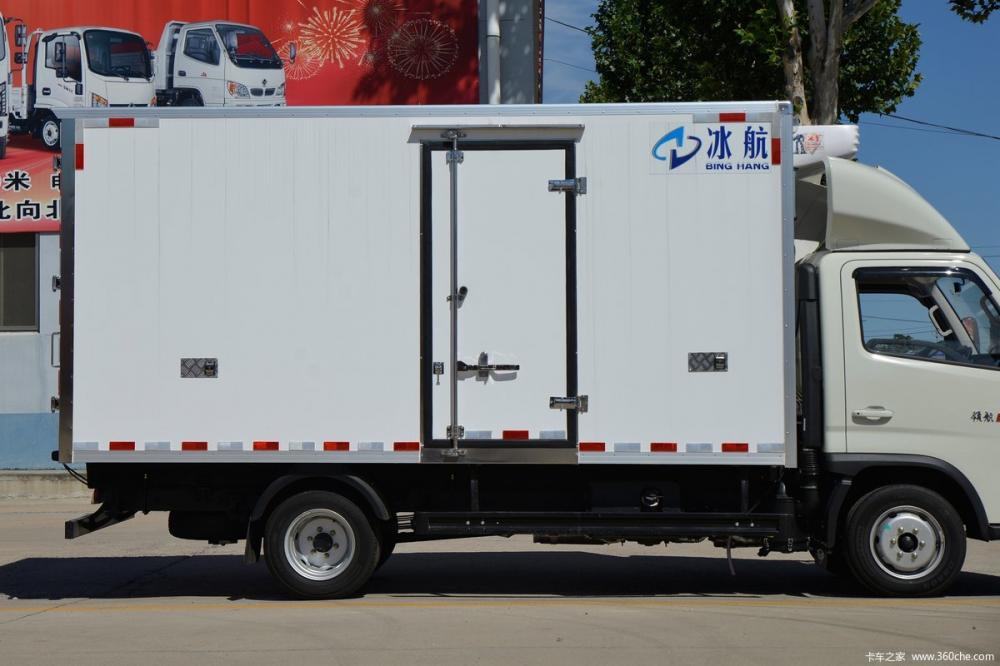

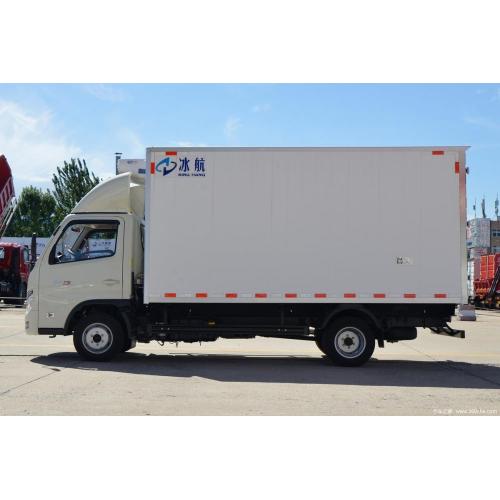

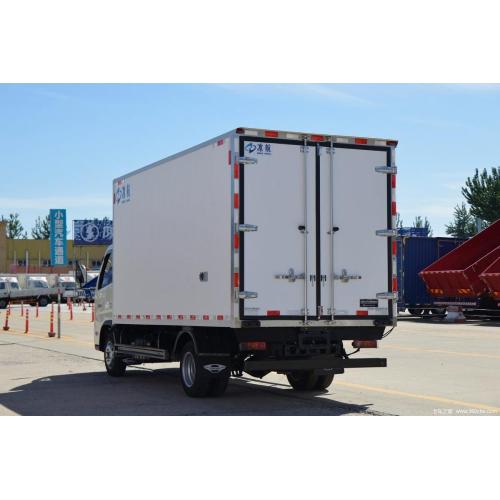

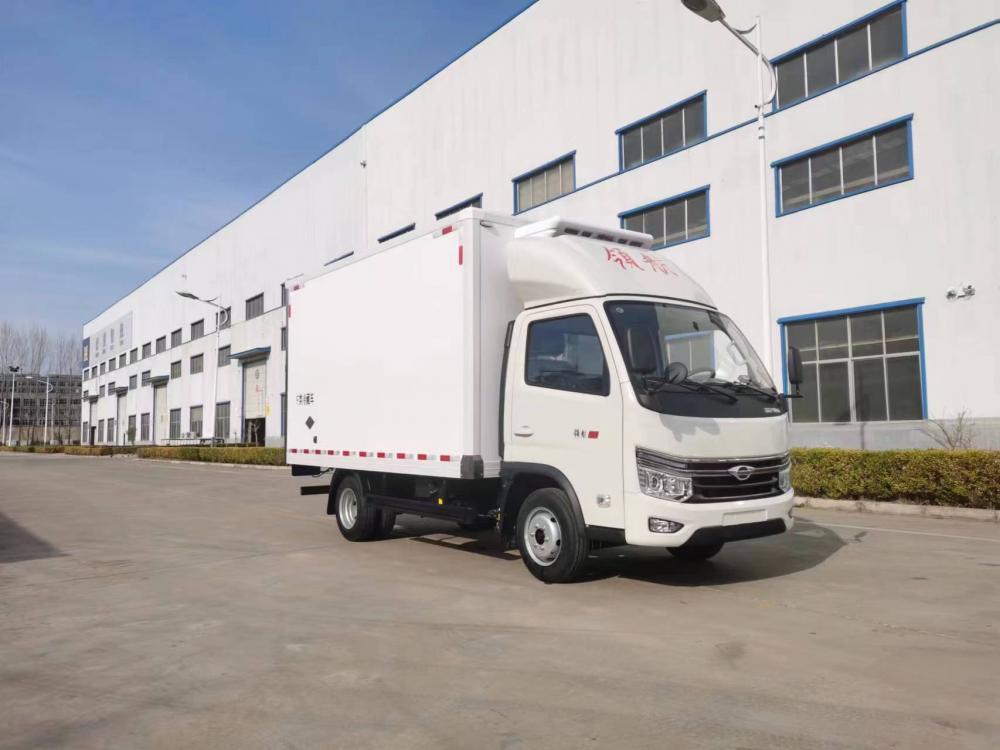

Foton Navigation S1 Refrigerated Truck
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
Production Technology of Frozen Carriage Body
1. The sandwich board with segmented assembly is a bonding type, which is widely used by major domestic refrigerated truck manufacturers. Refrigerated trucks produced using this technology have high insulation performance.
2. Injection foam type for segmented assembly.
3. The overall skeleton is injected with foam.
4. Vacuum adsorption adhesive
| Basic information | |||
| Announcement model: | DKV5040XLCBJ6EF | Type: | refrigerated truck |
| Driving form: | 4X2 | Wheelbase: | 3360mm |
| Box length level: | 4090,4080,3700mm | Engine: | Quanchai H20-120E60 |
| Transmission: | Wanliyang WLY5G32 | Rear axle speed ratio: | 4.333 |
| Body length: | 5995mm | Vehicle width: | 2240,2070mm |
| Body height: | 3170,2855,2955mm | Front wheelbase: | 1505mm |
| Rear wheelbase: | 1420mm | Vehicle weight: | 2600,2660(Kg) |
| Rated load capacity: | 1765(Kg) | Total mass: | 4495(Kg) |
| Maximum speed: | 120KM/h | Origin: | D41 Factory Building (Southeast Side), Xipeng Industrial Park, No. 6 Sendi Avenue, Xipeng Town, Jiulongpo District, Chongqing |
| Tonnage level: | Light truck | Approach angle: | 16 degrees |
| Departure angle: | 16 degrees | Segmented markets: | Cold-chain transportation |
| Remarks: | Optional LED headlights | Front/rear suspension: | 1110/1525(mm) |
| Engine parameters | |||
| Engine model: | Quanchai H20-120E60 | Engine brand: | Quanchai |
| The engine is commonly known as: | Quanchai 2L | Number of cylinders: | 4 |
| Fuel type: | diesel oil | Cylinder arrangement: | Inline |
| Displacement: | 2L | Emission standards: | National VI |
| Maximum output power: | 90kw | Maximum horsepower: | 120 horsepower |
| Maximum torque: | 325N·m | Maximum torque speed: | 2000RPM |
| Rated speed: | 3200RPM | Engine type: | Inline four cylinder, water-cooled, four stroke, turbocharged intercooled, high-pressure common rail |
| Container parameters | |||
| Container form: | Box type | Container length: | 4090,4080,3700mm |
| Box width: | 2100,1850mm | Container height: | 2100,1800,1900mm |
| Cabin parameters | |||
| Driver's cab width: | 1730mm | Number of passengers allowed: | 2 people |
| Seating arrangement: | Single Row | ||
| Transmission parameters | |||
| Transmission model: | Wanliyang WLY5G32 | Transmission brand: | Wan Liyang |

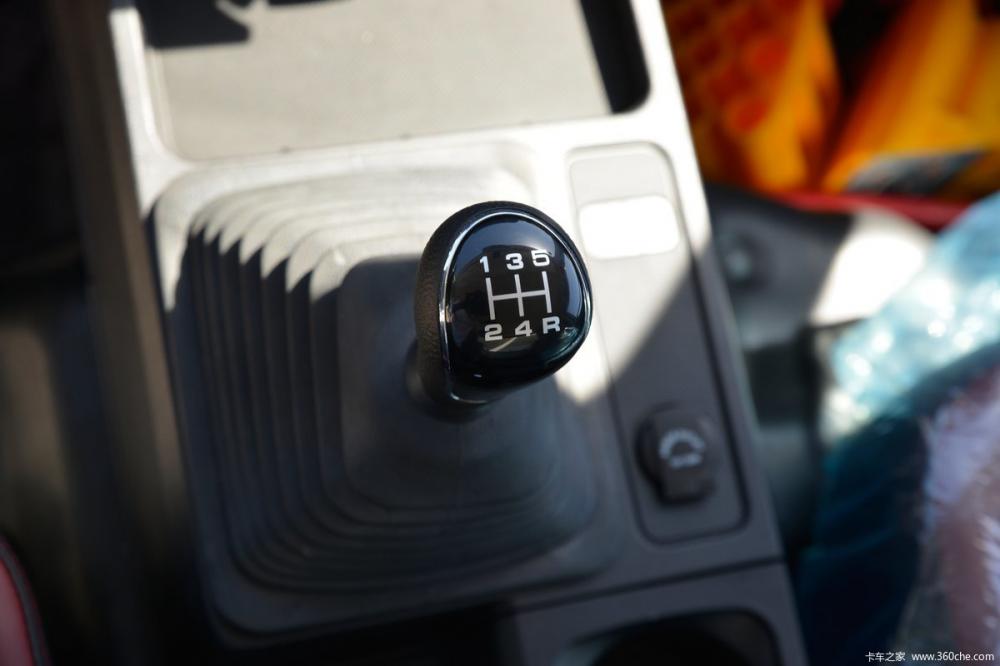

| Shift mode: | hand movement | Forward gear: | 5th gear |
| Reverse gears: | 1 unit | ||
| tank | |||
| Fuel tank capacity: | 70L | ||

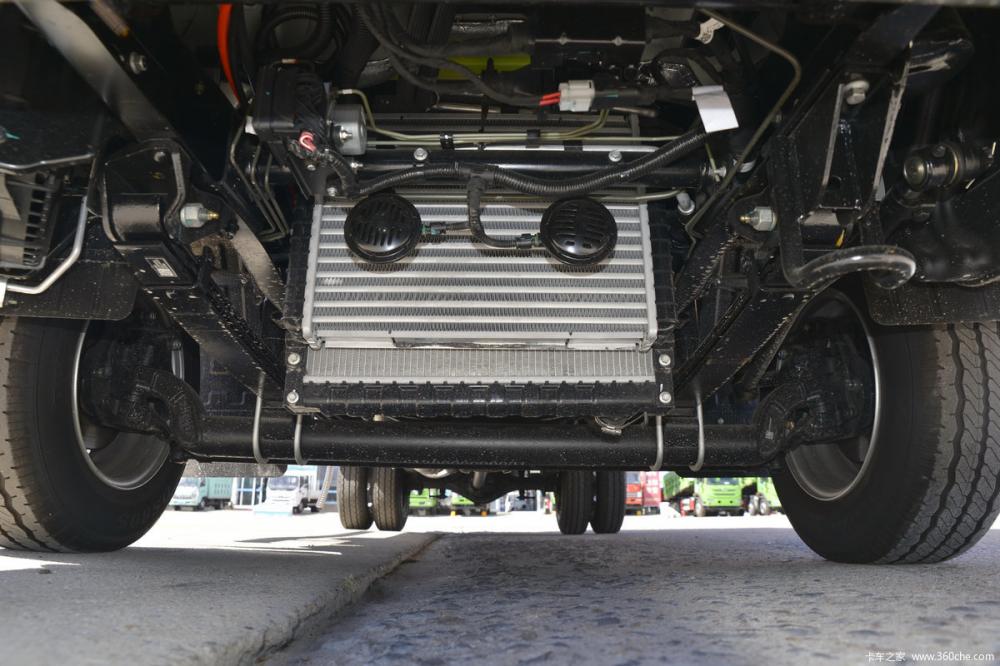

| Chassis parameters | |||
| Front axle allowable load: | 1605KG | Frame size: | 140mm |
| Rear axle description: | 2.5T | Rear axle allowable load: | 2620KG |
| Speed ratio: | 4.333 | Number of springs: | 3/3+3 |
| Frame form: | Straight through beam | ||
| tire | |||
| Tire specifications: | 185R15LT 8PR | Number of tires: | 6 |
| Handling configuration | |||
| ABS anti lock braking: | ● | EBS electronic brake system: | - |
| ASR drive anti slip: | - | Vehicle stability system: | - |
| Rear axle lifting: | - | Inter axle differential lock: | - |
| Inter wheel differential lock: | - | Clutch assist: | ● |
| Steering assistance: | ● | Load sensing proportional valve (SABS): | ● |
| external configuration | |||
| Flow deflector: | ○ | Integrated mudguard: | ● |
| Side skirts: | ● | Aluminum alloy gas storage tank: | - |
| Heating of diesel coarse filter: | - | ||
| internal configuration | |||
| Steering wheel adjustment: | hand movement | Multifunctional steering wheel: | ● |
| Air conditioning regulation form: | Optional manual | Car refrigerator: | - |
| Independent heating: | ● | Power windows: | ● |
| Electric rearview mirror: | - | Electric heating of rearview mirror: | ● |
| Seat material: | imitation leather | Reverse image: | ○ |
| Remote control key: | ● | Electronic central locking: | ● |
| Multimedia configuration | |||
| Color large screen on the center console: | ○ | GPS/Beidou dash cam: | - |
| External audio source interface (AUX/USB/iPod, etc.): | ● | Bluetooth/Car Phone: | ○ |
| Radio: | ● | Road rescue call: | not have |
| Lighting configuration | |||
| Front fog lights: | ● | Daytime running lights: | ● |
| Adjustable headlight height: | ● | LED tail lights: | - |
| Brake braking | |||
| Engine braking: | standard configuration | Exhaust braking: | - |
| Front wheel brakes: | Drum brake | Rear wheel brakes: | Drum brake |
| Intelligent configuration | |||
| Vehicle networking system: | ● | Cruise control: | ○ |
| Forward collision warning system: | - | Emergency brake assist system: | - |
| Lane keeping system: | - | Adaptive cruise control: | - |
| Tire pressure monitoring system: | - | Lane change support: | - |
