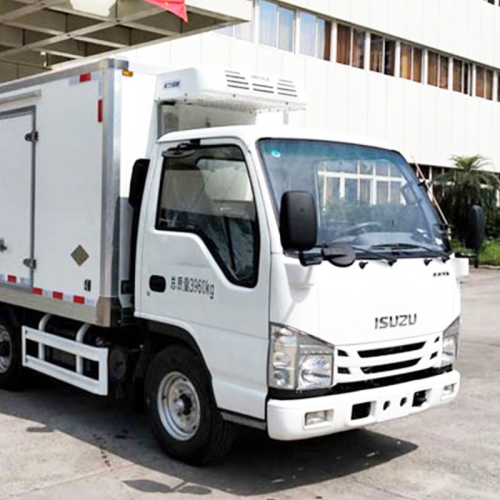

Qingling Small Truck Refrigerated Truck
-
$20229.00≥1 Others
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
During the operation of the refrigeration system, the air compressor continuously sucks in the low-pressure gaseous refrigerant from the evaporator. After the compressor works, it becomes high-pressure refrigerant vapor and flows to the condenser. Due to the high pressure, the condensation process is carried out in the condenser, emitting a large amount of heat to the surrounding environment. The refrigerant coming out of the condenser completely turns into liquid. When the liquid refrigerant flows into the expansion valve, the pressure drops sharply, The liquid refrigerant undergoes the evaporation process in the evaporator, absorbing a large amount of heat from the carriage, thereby reducing the temperature inside the carriage. The refrigerant vapor enters the air compressor again for the next working cycle, continuously circulating and transferring the heat inside the carriage to the surrounding atmosphere.
|
Technical parameters of the entire vehicle |
|||
|
Product trademark |
Qingling brand |
Announcement batch |
353 |
|
product name |
refrigerated truck |
Model |
QL5040XLCBUEAJ |
|
Total mass (Kg) |
3960 |
Tank volume (m3) |
|
|
Rated load capacity (Kg) |
1370 |
External dimensions (mm) |
4870x1770x2710 |
|
Curb weight (Kg) |
2460 |
Cargo compartment size (mm) |
3045x1624x1600 |
|
Rated passenger capacity (person) |
|
Total mass of quasi trailer (Kg) |
|
|
Approach angle/departure angle (°) |
24/17 |
Front/rear suspension (mm) |
1015/1365 |
|
Axle load (Kg) |
1920/2040 |
Maximum speed (km/h) |
90 |
|
notes |
1. The net power of the engine of the car is 87kW, the engine model is 4KH1CN6LB, and the declared fuel consumption value is 11.4L/100km; 2. The top of the box type transport vehicle is closed and cannot be opened; 3. Side protection material: steel plate Q235, connection method: bolted to the bottom of the cargo box; Rear protection material: steel plate Q235, plate thickness 4.0mm, connection method: The rear protection bracket is connected to the rear end of the longitudinal beam of the frame with bolts. The size of the rear protection section is 120 × 24 (mm), and the ground height is 430mm; 4. The vehicle is equipped with ABS, and the corresponding relationship between ABS and its controller model/manufacturer is: APG3550500A/Zhejiang Asia Pacific Electromechanical Co., Ltd., CM4YL/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd; 5. Optional widened rearview mirror and regular rearview mirror; Choose a cab that only changes the front panel, front grille, and front combination lighting, and also install a front "4K ENGING" or "NJR" or "NHR" or "NKR" or "100P" badge; 6. Allow optional installation of non side opening doors; 7. The vehicle can be equipped with ETC onboard device as an option; 8. Allowing the selection of different units with equivalent power from different manufacturers. 9. The curb weight includes spare tire, cushion film, 90% fuel, coolant, lubricant, etc. The weight of the car body is 706Kg, and the corresponding material for the floor/side panels is PU+fiberglass composite plate, with a thickness of 85/70 (mm). |
||
|
Chassis technical parameters |
|||
|
Chassis Model |
QL1040BUEAY |
Chassis brand |
Isuzu |
|
manufacturing enterprise |
Qingling Motors Company Limited |
Address |
|
|
number of axles |
2 |
Number of tires |
4 |
|
wheelbase |
2490 |
||
|
Tire Size |
7.00R15 10PR,7.00R15LT 10PR |
||
|
Number of steel plate springs |
6/5 |
||
|
Front wheelbase (mm) |
1401 |
Rear wheelbase (mm) |
1395 |
|
fuel type |
diesel oil |
Emission standards |
GB3847-2005,GB17691-2018 National VI |
|
Engine model |
Engine Manufacturer |
Displacement (ml) |
Power (Kw) |
|
4KH1CN6LB |
Isuzu (China) Engine Co., Ltd |
2999 |
88 |
