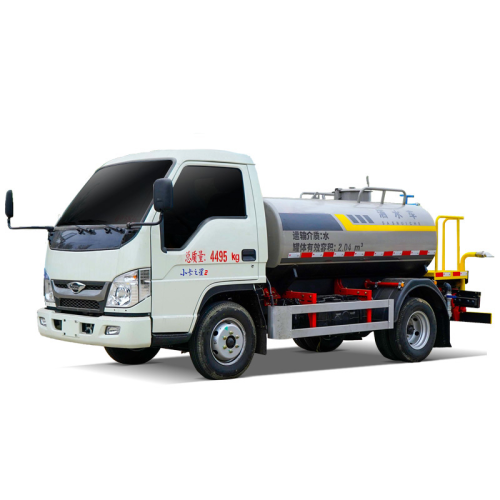

Futian Mini Card 2 2.5m ³ Sprinkler Truck

Futian Mini Card 2 2.5m ³ Sprinkler Truck

$8348.64 - $27828.80/Vehicle

Min. Order:: 1 Vehicle

Min. Order:: 1 Vehicle

Transportation:: Contact Us

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Contact Us
Transportation:	Contact Us

Product Description

Spray front and sprinkle back, with a duck shaped nozzle or round head nozzle installed in the front, a cylindrical sprinkler nozzle or showerhead nozzle installed in the back, and a working platform equipped with a high-pressure water cannon at the rear. The rear can also be equipped with 8 nozzles (optional). Water sprayers are generally used to flush the streets.

The basic components of Dongfeng sprinkler truck include anti rust tank body, power take-off, transmission shaft, dedicated self suction sprinkler pump, pipeline network, spray outlet, working platform, and Class II chassis.

Sprinkler can be equipped with optional features: GPS, universal nozzle, electromagnetic valve, pneumatic valve, visual operating system, external power, medicine tray.

The chassis of specialized vehicles generally adopts Class II chassis such as Nanjun, Dongfeng, Jiefang, and Foton Ouman.

Widely used include the "Nanjun Ruijie Sprinkler" and "Dongfeng Xiaobawang Sprinkler"

Dongfeng Dolika Sprinkler, Dongfeng 140 Sprinkler (long head), Dongfeng 145 Sprinkler (flat head)

Dongfeng 153 sprinkler truck (flat head), Dongfeng Tianjin sprinkler truck, Dongfeng Tianlong rear double bridge sprinkler truck

Dongfeng Tianlong front four rear eight large water transport vehicles.

1685523330196219 Jpg 1685523330430326 Jpg 1685523330909177 Jpg 1685523331201505 Jpg 1685523331217684 Jpg 1685523331714830 Jpg 1685523331774862 Jpg 1688118748493583 Jpg

Project parameter notes
Vehicle model DKV5040GSSB6
Wheelbase (m m m 2600
Engine model Q23-95C60 National VI emissions, diesel engine
Engine power (kW) 70
External dimensions [length x width x height (mm)] 5180 * 17301790 * 23902002080
Curb weight (kg 2320
Maximum total mass (kg 4495
Working speed (km/h), engine speed 1500r/min, working in neutral position
Effective volume of box (m3) 2.5
Cylinder body material: Wuhan Iron and Steel High quality Carbon Steel (4mm thick)
Front flushing water spraying width 15-30M
Watering on the rear platform, the anti-aircraft gun has a dust content of 30-35, and the anti-aircraft gun can be adjusted 360 degrees
Dedicated sprinkler pump, high-power water pump with a vertical suction head of 6M
Conventional functional configurations include forward flushing, backward spraying, side spraying, S-type sprinkler anti-aircraft gun, and fire interface
