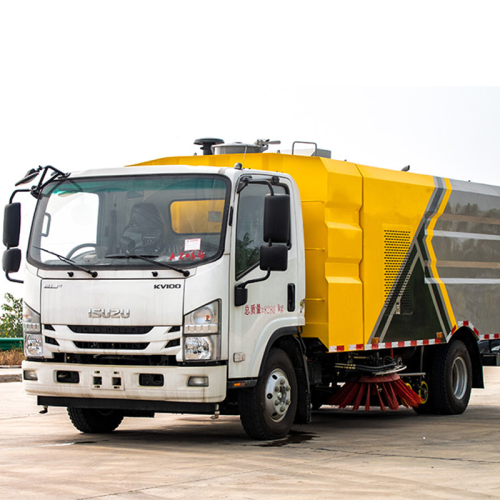

Isuzu Kv100 Washing And Sweeping Car
$8348.64 - $27828.80/Vehicle
- Min. Order:
- 1 Vehicle
- Min. Order:
- 1 Vehicle
- Transportation:
- Contact Us
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Contact Us |
|---|---|
| Transportation: | Contact Us |
Product Description
Product Description
The washing and sweeping vehicle adopts a center mounted two brush discs, a center mounted wide suction cup, and a V-shaped high-pressure flushing frame with collision avoidance function, forming a washing and sweeping belt of 3.5 meters or more. The secondary engine supplied by mainstream engine manufacturers is used, and fuel cells are also used as the power drive device horizontally placed in the middle of the frame. The suction fan with pneumatic clutch control is arranged on the left side of the power compartment.
Washing and sweeping vehicle water tank: The water tank and garbage bin made of stainless steel material are both constructed with square tile edges.
The water tank is divided into two parts, one of which is a front independent water tank, assembled at the back of the cab; The other part of the water tank is installed inside the garbage bin and can be lifted and lowered simultaneously with the garbage bin. The interior of the garbage bin adopts a high-pressure flushing self-cleaning function to flush out the remaining garbage in the bin.
| category | project | Parameters or configurations |
| Vehicle parameters | Model | DKV5080TXSQ6 |
| External dimensions [length x width x height (mm)] | 7100*2200;2250*2760 | |
| Curb weight (kg | 70,007,200 | |
| Maximum total mass (kg) | 8280 | |
| Rated load capacity (kg) | 11,501,085 | |
| Maximum driving speed (km/h) | 105 | |
| Rated members 2; 3 people | ||
| Chassis parameters | Engine model | 4KH1CN6HB/4KH1CN6LB National VI emissions, diesel engine |
| Category, Production Enterprise | Category, Production Enterprise | |
| Engine power (kW) | 97/88 | |
| Wheelbase (mm | 3815 | |
| tire | 7.50R16LT14PR | |
| Front County/Back County (mm) | 1120/2165 | |
| Braking form | Exhaust braking | |
| Number of spring plates | 6/6+6 | |
|
How many levels |
Isuzu 5th gear; Isuzu 6th gear | |
| Number of tires | 6+1 | |
| Chassis Model | QL1080BUKACY | |
