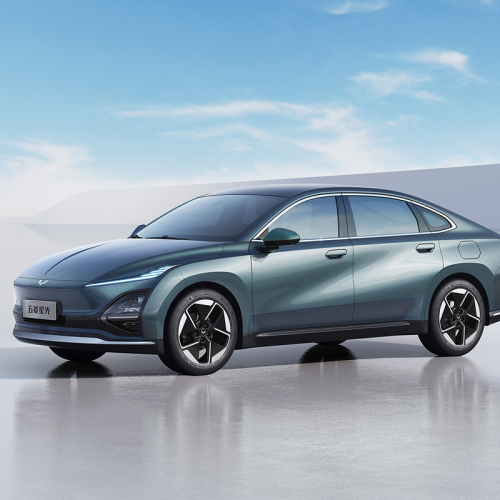

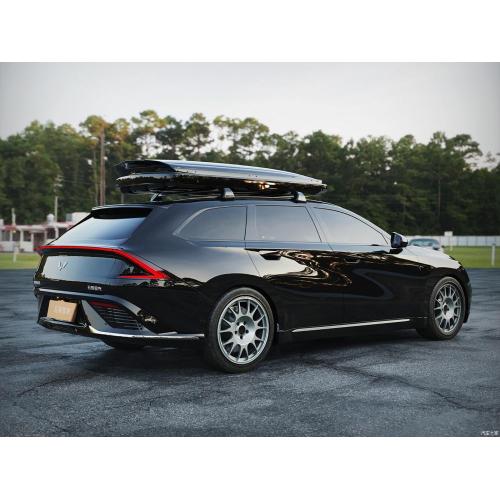

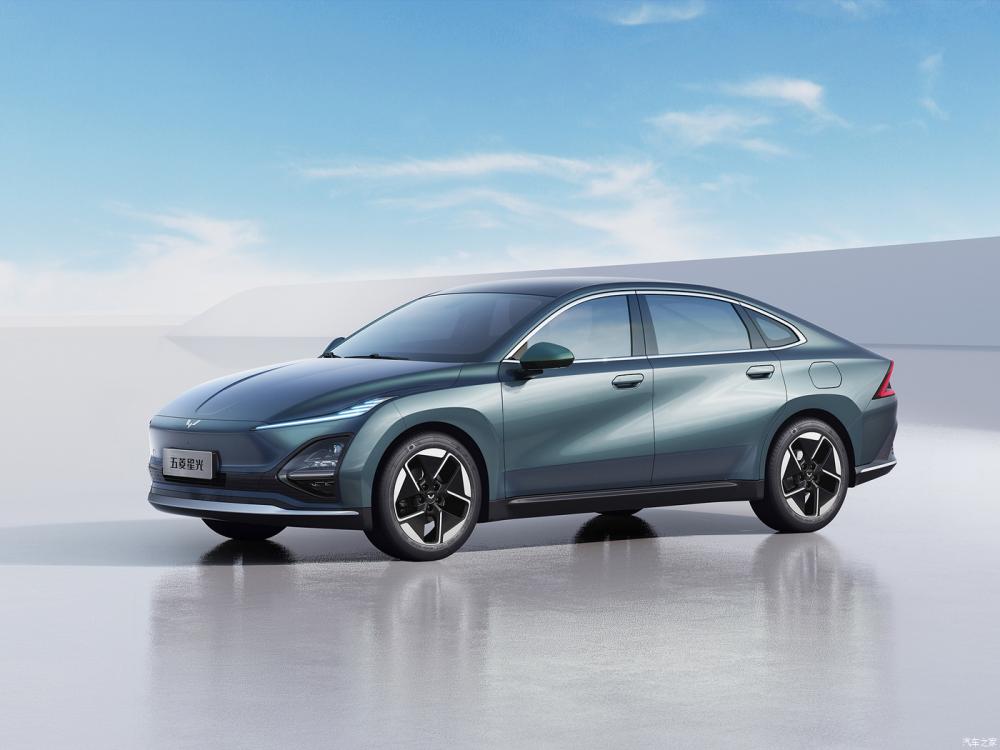

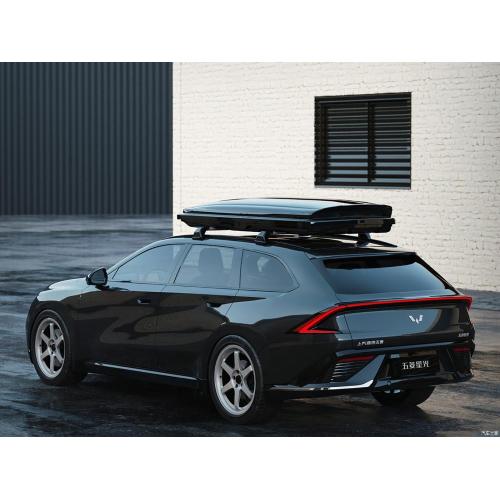

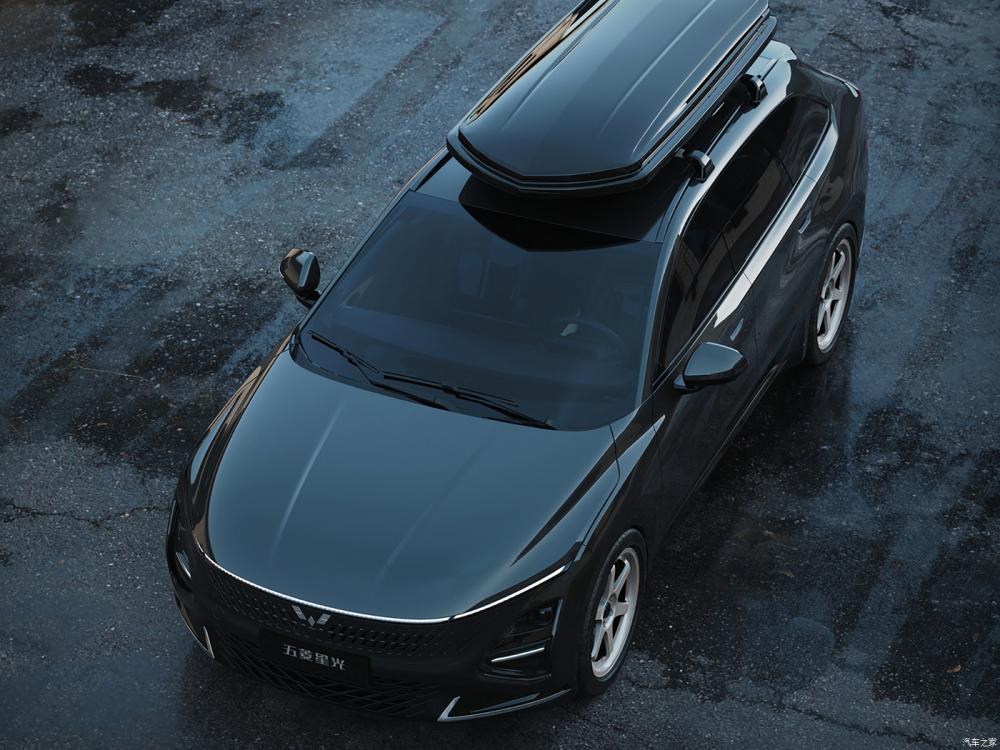

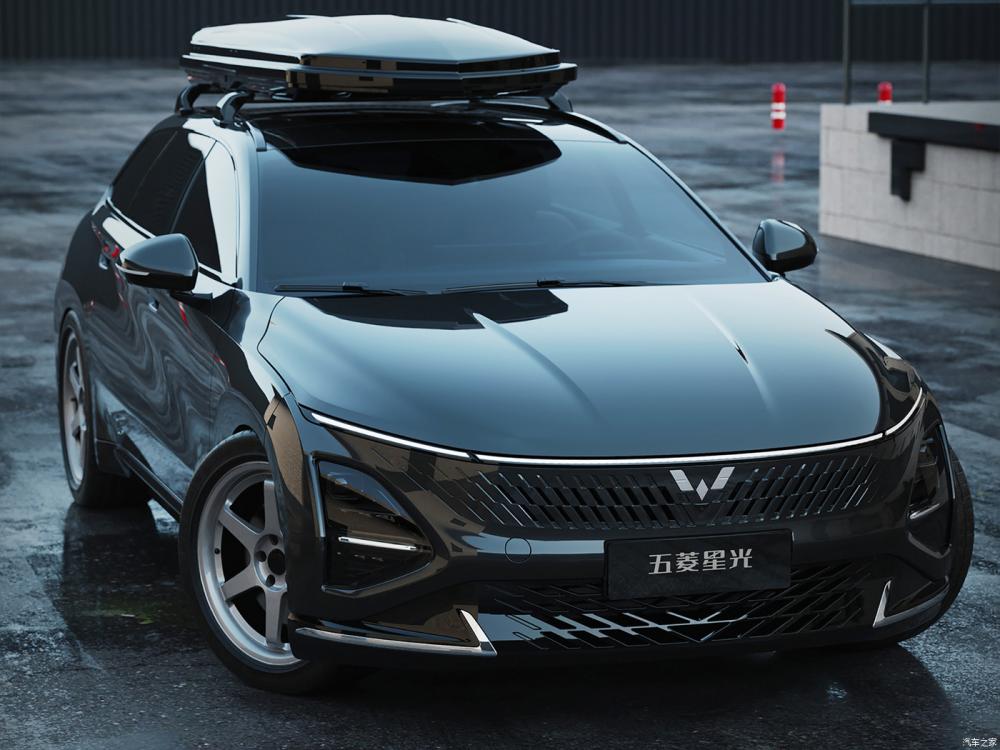

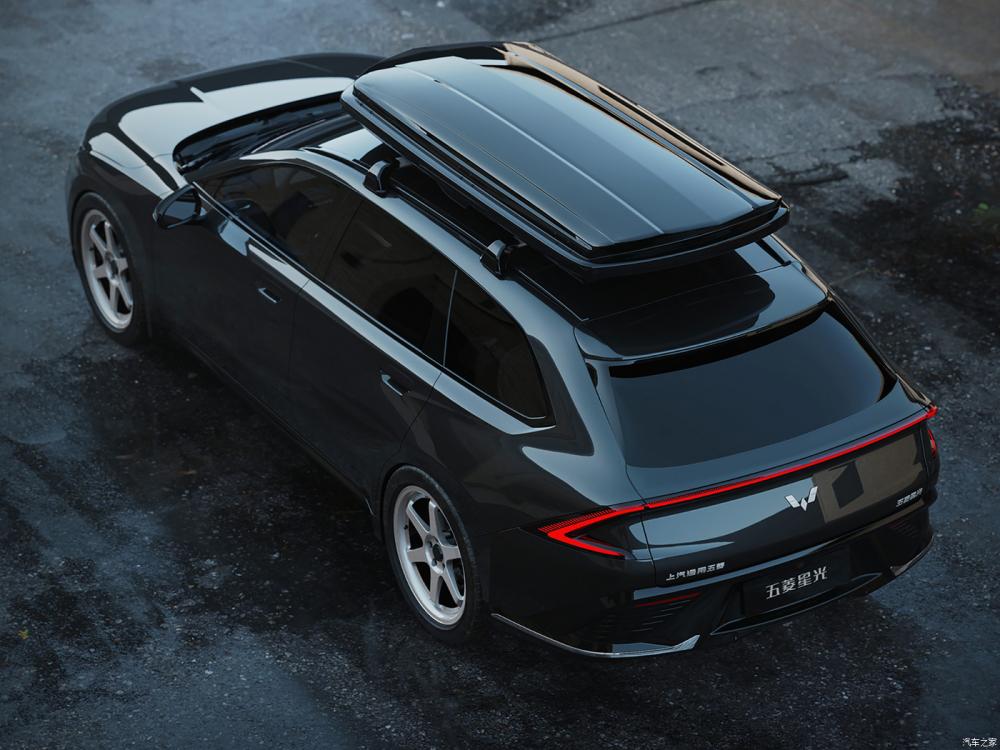

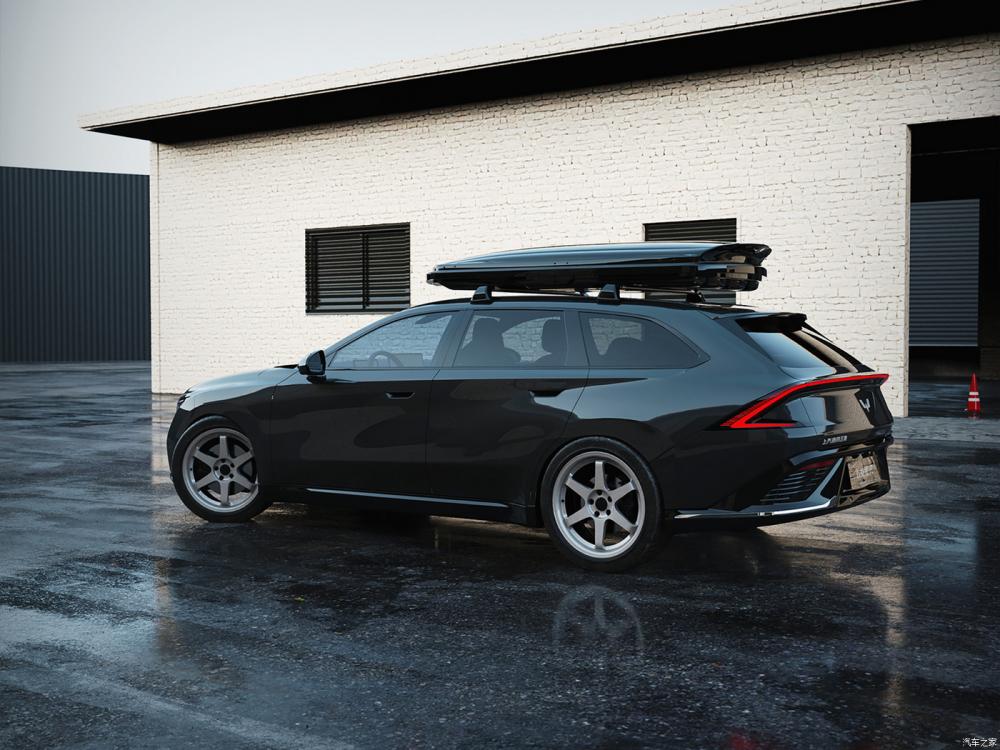

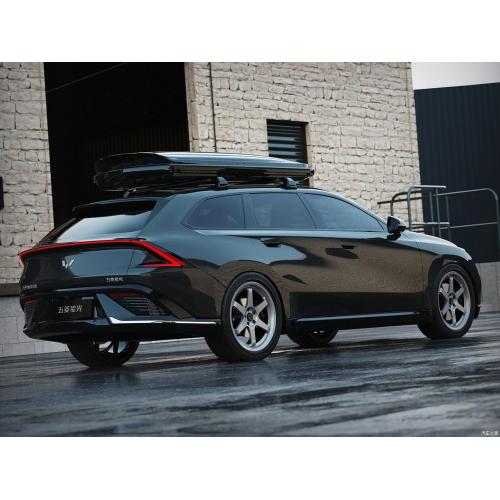

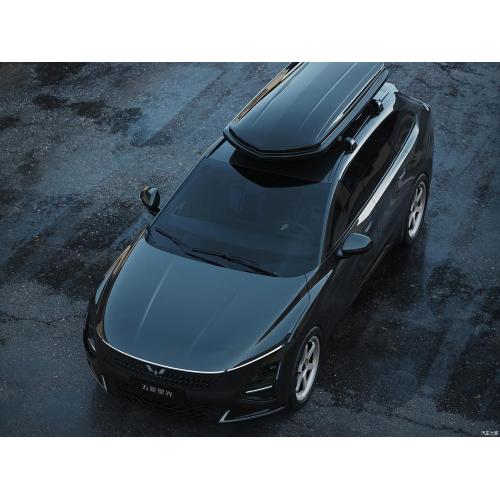

Wuling Xingguang Passenger Car

Buses can be divided into single carriages and trains according to their overall structure. A bicycle is a basic type of vehicle, often classified into large, medium, and small sizes based on the total weight of the passenger car or the number of seats available. According to Chinese regulations, the length of a single passenger car generally does not exceed 13.7 meters. The carriage and frame of a passenger train are divided into two sections: front and rear. The two carriages are connected by articulated plates, and the two carriages are connected by movable pleats to connect the front and rear of the carriages, so it is also called an articulated or aisle type passenger car. According to Chinese regulations, the length of passenger trains generally does not exceed 18 meters.

Manufacturer's suggested price is 88800 yuan and 105800 yuan

Basic parameters

Manufacturer SAIC GM Wuling SAIC GM Wuling

Medium size vehicles

Energy type plug-in hybrid power

Environmental Protection Standards National VI National VI

Listing time: December 2023

WLTC pure electric range (km) 50 105

CLTC pure electric range (km) 70 150

Fast charging percentage 30-80

Engine 1.5L 106 horsepower L4 1.5L 106 horsepower L4

Electric motor (Ps) 177 177

Transmission 1st gear DHT 1st gear DHT

Length * Width * Height (mm 4835 * 1860 * 1515 4835 * 1860 * 1515)

Body structure: 4-door 5-seat sedan, 4-door 5-seat sedan

Maximum speed (km/h 145 145

WLTC comprehensive fuel consumption (L/100km) 0.68 0.29

Minimum State of Charge Fuel Consumption (L/100km) 3.98 4.09

Vehicle warranty for six years or 150000 kilometers for six years or 150000 kilometers

Vehicle body

Length (mm) 4835 4835

Width (mm 1860 1860

Height (mm 1515 1515

Wheelbase (mm) 2800 2800

Front wheelbase (mm) 1610 1610

Rear wheelbase (mm) 1620 1620

Approach angle (14 14

Departure angle (18 18

Body structure three box car three box car

Door opening method: swing door, swing door

Number of car doors 4 4

Seating capacity (number) 5 5

Fuel tank volume (L) 53 53

Curb weight (kg 1620 1695

Maximum Full Load Mass (kg 2010 2085

Engine

Engine model LBG LBG

Displacement (mL 1498 1498

Displacement (L) 1.5 1.5

Air intake form: naturally aspirated, naturally aspirated

Engine layout horizontal

Cylinder arrangement L L

Number of cylinders 4 4

4 valves per cylinder

Valve distribution mechanism DOHC DOHC

Maximum horsepower (Ps) 106 106

Maximum power (kW) 78 78

Maximum torque (N-m) 130 130

Maximum net power (kW) 75 75

Fuel form plug-in hybrid power plug-in hybrid power

Fuel grade 92

Fuel supply method, multi-point electronic injection, multi-point electronic injection

Cylinder head material aluminum alloy aluminum alloy

Material of cylinder body: cast iron and cast iron

Environmental Protection Standards National VI National VI

Electric motor

Motor type permanent magnet/synchronous permanent magnet synchronous

Total power of electric motor (kW) 130 130

Total power of electric motor (Ps) 177

Total torque of electric motor (N-m) 320 320

Maximum power of front motor (kW) 130 130

Maximum torque of front motor (N-m) 320 320

Number of driving motors, single motor, single motor

Motor layout front facing

Battery type: Lithium iron phosphate battery

Cell brand Ruipu Saike Ruipu Saike

WLTC pure electric range (km) 50 105

CLTC pure electric range (km) 70 150

NEDC comprehensive range (km) 1100 1100

Battery energy (kWh) 9.5 20.5

Battery pack warranty for eight years or 150000 kilometers



support

Fast charging function

Fast charging application volume (% 30-80

Transmission

Number of gears 1 1

Transmission type: Hybrid Special Transmission (DHT) Hybrid Special Transmission (DHT)

Abbreviated as 1st gear DHT

Chassis steering

Drive mode front wheel drive front wheel drive

Former County Frame Type MacPherson Independent County Frame MacPherson Independent County Frame

Rear County Frame Type: Multi link Independent County Frame: Multi link Independent County Frame

Assist type: electric assist electric assist

Vehicle body structure load-bearing type

Wheel braking

Front brake type ventilated disc ventilated disc

Rear brake type disc type

Parking brake type electronic parking electronic parking

Front wheel Yi specification 215/55 R17 215/50 R18

Rear tire size 215/55 R17 215/50 R18

Spare tire specification tire repair tool tire repair tool

Passive safety

Driver/passenger seat safety airbag

Front/rear side air wrap front ●/rear - front ●/rear-

Tire pressure monitoring function ● Tire pressure display ● Tire pressure display

Reminder of seat belt not fastened ● Front row ● Front row

Active safety

Low speed driving warning

Driving control

Driving mode switching ● Sport

● Economy

● Standard/Comfort Sports

economic

● Standard/Comfort

Driving hardware front/rear ●

Front/rear parking radar front/rear ●

Driving assistance image ● Reverse image ● 360 degree panoramic image

Driving functions

Cruise system ● cruise control ● cruise control

Satellite navigation system

Navigation road condition information display

Appearance/anti-theft

Wheel material ● Aluminum alloy ● Aluminum alloy

Engine electronic anti-theft

Interior central locking

Key type ● Remote control key

● Bluetooth key ● Remote control key

Bluetooth key

Keyless start system O

Keyless entry function ● Front row ● Front row

Remote start function

Battery pre heating

External lighting

Low beam light source LED

High beam light source LED

Sunroof/Glass

Front/Rear Electric Window Front ●/Rear ● Front ●/Rear ●

One click window lifting function ● All car

Car dealer anti pinch function

In car makeup mirror ● driver's seat+lighting

● Co pilot+lighting ● Driver+lighting

● Co pilot+lighting

Sensing wiper function ● Rain sensing type ● Rain sensing type

External rearview mirror

External rearview mirror function ● Electric adjustment

Electric folding

● Heating of rearview mirrors

● Automatic folding when locked ● Electric adjustment

Electric folding

● Heating of rearview mirrors

● Automatic folding when locking the car
