Application:

Series ZYD-M Mobile type Double-stage vacuum Transformer oil purifier can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make the oil limiting voltage-withstand value much higher and make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil, dielectric oil, insulating oil and so on. It also can be used for filtration of more than 110KV substation live line work onsite. Meanwhile, as the bridge-type vacuum linking system, Series ZYD-M oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Comparing with the single stage type, this machine adopts the double stages vacuum system, which can improve the machine working vacuum value highly, so it can remove the water, gas and impurities in insulating oil high-efficiently, increasing and maintain the oil's dielectric strength more higher.

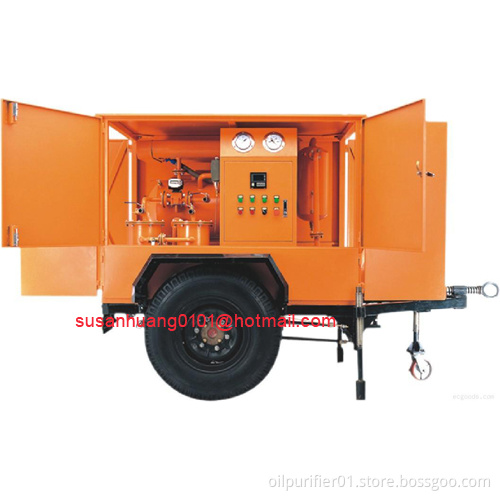

According to fieldwork requirement, this machine equips car wheels, which can be easily moved to any work point by traction. It is especially suitable for purifying oil which locates in fields.

Feature:

1. PH of treat oil ≥5.5   2. Acid value ≤0.03mgkoH/g

3. Flash point ≥145℃   4. Breakdown voltage value ≥80KV

5. Dielectric loss: Dielectric loss: tg δ (90°C)% ≤0.001

6. High vacuum: high point-vacuum ≤5Pa; working-vacuum ≤35Pa

7. High absorption speed: absorption speed power ≥333L/Sr.

8. Duplex 3D stereo-evaporation, eliminating the liquid water quickly

9. UK G technology, by which the trace water that is show chain, such as dissolved water, can be removed effectively

10. Instinctively removing impurities system filtering through the double FH trapezoidal network and absorbing by high polymer without mechanical power

11. Argon fiber infrared heating system that can make the oil contain zero sum of ethyne after the treatment.

12. Double-infrared fluid level auto-control systems replace manual or floating ball valve control

13. A trinity of interlocked preventive device

14. The performance and lifetime of insulating oil will improve and extend after purification

15. It can purify transformer oil on-line without cutting off the power

16. Especially applied to vacuum filling oil and drying for power transmission equipments that are over 110KV

17. The machine with PLC can operate automatically. (Optional)

We supply oil purifier machine as below:

1. Insulating oil purifier/ Transformer oil purifier/ Dielectric oil treatment

1.1. Series ZY: Zhongneng vacuum Insulation oil purifier

1.2. Series ZY-A: Zhongneng PLC type automatic Vacuum Transformer oil/ Insulation oil automation filtration

1.3. Series ZY-R: Zhongneng vacuum Insulation oil / Transformer oil regeneration

1.4. Series ZYB: Zhongneng Multi-Functional oil Regeneration purifying machine

1.5. Series ZYD: Zhongneng Double-stage vacuum Transformer oil purifier, oil filtration, oil purification, oil treatment

1.6. Series ZYD-A: Zhongneng PLC type Automation Double-stage vacuum Transformer oil purifier

1.7. Series ZYD-I: Zhongneng Double-stage vacuum Transformer oil regeneration purifier

1.8. Series ZYD-E Zhongneng Weatherproof Vacuum Transformer oil purification, oil treatment plant

1.9. Series ZYD-M: Zhongneng Mobile Type Transformer Oil Purification Plant, Oil Recycling

2.0. Series ZYD-E: Zhongneng Enclosed Type Transformer Oil Purification Plant, Oil Recycling

2. Series TY Turbine oil purifier
3. Series TYA Lubricating oil purifier
4. Series TYA-I Phosphate Ester Fire-resistant oil purifier
5. Series TYC Lubricating oil regeneration purifier
6. Series TYB Coalescence-Separation oil purifier
7. Series LY Plate Pressure oil purifier
8. Series JL Portable oil purifier
