LCD displayer of transformer oil acidity test kit,acid tester

Specifications

LCD displayer of transformer oil acidity test kit

Application:

The Acid Number Tester is suitable to determine acid number of transformer oil and turbine oil.

It is designed and made as per the National Standard GB/T264-83 GB/T7599-87 GB258-77 [Test Methods for Acid Number of Petroleum Products". It takes LCD for display. It can make determination, print test data automatically using a microprocessor. Test procedures are automatically controlled by the microprocessor. Operation procedures are intuitive and simple. Adopt a magnetic stirrer, it is safe, reliable, delicate, and there is less noise during test procedure

Features:

1. Adopt Peristaltic pump metering technology, extract liquid and neutralizer liquid is added by Peristaltic pump

2. Color sensor with a detection end point of titration, end condition judgement is reliable

3. six test cups that can test six samples at one time.

4. No need waste liquid cup

5. Adopt the method of acid extraction combines with titration

6. 320x240 LCD liquid crystal display, No Logo Button

7. Can store 500 records with time

8. Built-in high speed thermal printer. It is beautiful and fast

9. With RC232 which can connect with computer

Technical parameter:

Definition: Acid is 0.001~0.1000mgKOH/g, ±0.002mgKOH/g

Acid is 0.1000~0.5000mgKOH/g, ±5%
Test range: 0.0001~0.5000mgKOH/g

Resolution: 0.0001mgKOH/g

Repeatability: 0.002mgKOH/g

Power supply:AC220V±20% 50HZ±10%

Ambient Temperature: 5°C~40°C

Relative humidity: ≤85% RH

Dimension:420×270×260(mm)

Weight:9kg

Key words: transformer oil test equipment, transformer oil tester, acidity tester, flash point tester, moisture testing machine, moisture content tester, oil analyzer, oil analysis equipment, transformer oil acidity test kit, oil water content tester, BDV tester, break down voltage tester, viscosity tester, oil tester, oil testing device

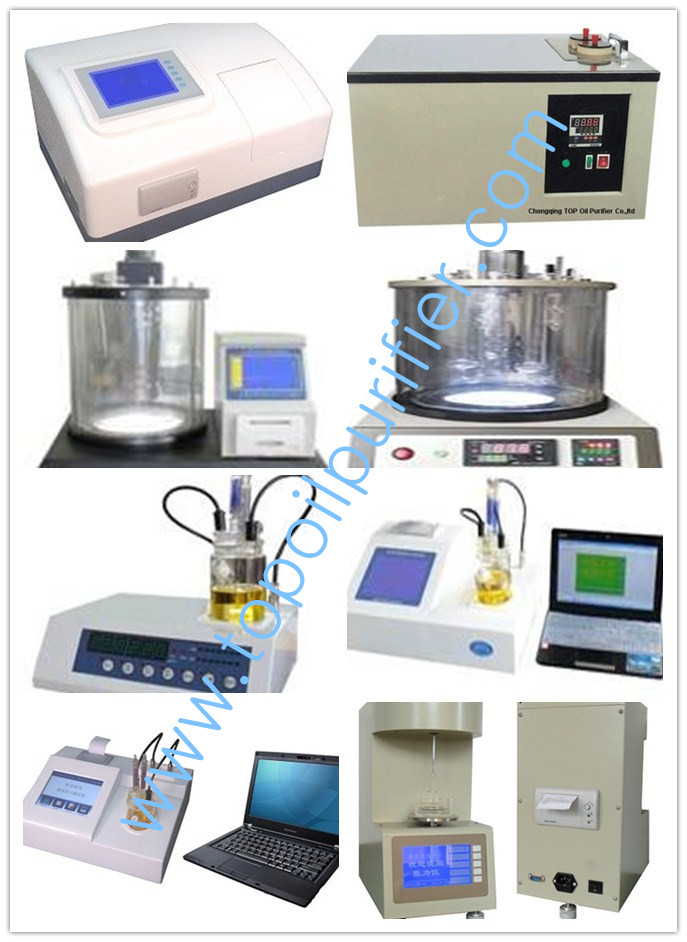

Our Major Testing Equipment

1.Transformer oil Breakdown voltage Tester ( BDV test kit) series IIJ-II

2. Acidity tester model ACD-3000I

3. Karl Fischer Water content Tester Model TP-6A / model TP-2100

4. Fully automatic Interfacial Tension Analyzer model IT-800

5.Gas-Chromatography transformer oil gas analyzer model DGA2013-1

6.Multi-functional Vibration tester model TYD-2000

7.Consolidation Point Determinator model PT-2000

8. Kinematic Viscosity tester model VST-8 /model VST-2000

9. Flash point tester (open cup) model TPO-3000

10. Flash point tester (close cup) model TPC-3000

11.TAN-DELTA TESTER,10kV Capacitance and Dissipation Factor Test Set model CDEF

12. Automatic Freezing Point & Pour Point Tester model TP-501Z

13.Determination of foaming characteristic of lubricating oil model SD-12579

14. Earth resistance tester model HYDW-II

15. Coil Resistance Tester (TPZC-40)

16. CT/PT tester model TPVA-404

17.Transformer turn ratio tester model HYG-II

18.Relaying Protection Tester model TPJB-III

19. Digital Grounding Resistance Tester model TP2571-II

20.DC High Voltage Generator model ZGF

21.Underground water/gold detector model TP-UWD

For more information, just contact us please.
