Petroleum Product Closed Cup Flash Point Analyzer/Tester

Petroleum Product Closed Cup Flash Point Analyzer/Tester

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 7 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	CHINA
Productivity:	1000
Supply Ability:	150
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	CE
Transportation:	Ocean,Air

Product Description

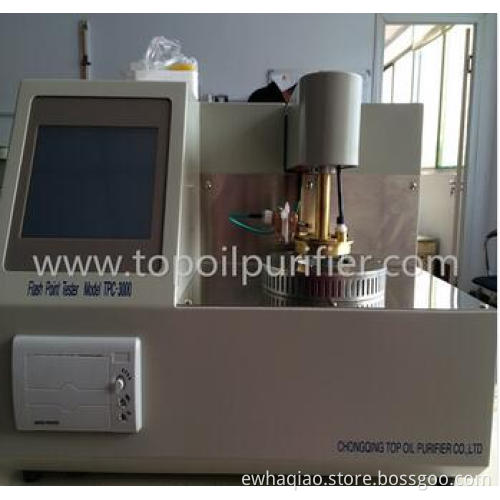

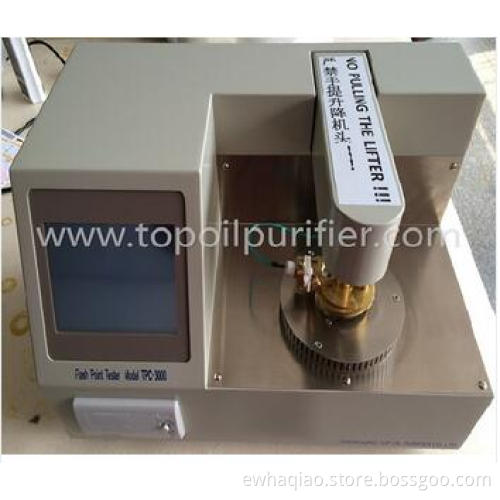

Petroleum Product Closed Cup Flash Point Analyzer/Tester

Why choose TOP?

1. Mature Technologies and Skillful workmanship

We control every single manufacturing process and make sure it will be done perfectly in our factory with the lowest cost with the best quality assurance.
2. Rational marketing and pricing strategy

We are not a nonprofit organizations but we only take the rational profit according to what we do.

3.Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
4. Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
5. Reliable Quality -TOP own high quality and performance for every TOP product is under strict quality control and testing.
6. Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

Application

No need of gas source; electronic ignition; imported sensor; automatic correction of the air pressure; alerting if over value
The automatic flash point analyzer(closed-up) is designed in accordance with ASTM D93 IGB261-2008, SH/T0315 etc. It adopts microcomputer technology that makes realization of completely automatic. This analyzer has the function of electronic ignition without air source, self fault checking ,high accuracy of testing, strong repeatability, stable and reliable performance, simple operation. It is an ideal flash point analyzer(closed-up) for petroleum,chemical,power station,environmental,railway,scientific research etc.

Product Parameters

Display	Color touch LCD display screen
Test method	Thermocouple differential detection
Test range	Room temperature-350℃
Resolution	0.1℃
Repeatability	National standard: flash point<104℃,allowed ±1℃; flash point≥104℃ allowed ±2℃; National standard: flash point≤110℃,allowed ±1℃; flash point>110℃ allowed ±2℃
Printer	High speed thermal printer,paper size:55mm
Temperature detection	Imported platinum resistance (Pt100Ω)
Ignition mode	Automatically electronic ignition with airs source
Self-checking	automatic fault checking
Power consumption	＜550w
Temperature	Atmospheric temperature: 10℃-45℃,humidity: 30-80%
Power	AC220V±10%
Dimension	397305240 mm
Weight	About 15 kg

Main Features
1.Color touch LCD screen display ,man-machine conversation interface in English with menu director
2.Adopts high speed signal processor: precision simulation/digital converter circuit
3.Adopts PID control algorithm: automatically adjust the heating curve according to standards
4.Built-in automatic atmospheric pressure detector:automatic to detect and correct the atmosphere pressure and self-adjust the flash point.
5.Aspiration,stirring,ignition,testing,alerting,cooling,printing are fully automatic.
6.Automatically detect the whole testing process, opening the lid, ignition, alerting, cooling, printing, etc.
7.Security airless source of platinum alloy to ignite:stable,reliable and high precision
8.Differential detection: automatic correction of systematic bias; automatic stop testing by over temperature detection and alert.
9.Equipped with parameters reminders like: test date, test time etc.
10.Data storage function: store 300 groups testing data.

Petroleum Products General Testers

1.Fully Automatic Karl Fischer Water Content Tester TP-2100
2.Kinematic Viscosity Tester VST-2000
3. Fully Automatic Oil Acidity Tester (6 cups) ACD-3000I
4. Fully Automatic Surface/Interface Tension Tester IT-800
5. Fully Automatic Open Cup Flash Point Tester TPO-3000
6.Fully Automatic Closed Cup Flash Point Tester TPC-3000
7.Cloud Point & Pour Point Tester PT-2000
8.Multi-functional Vibration Tester VBT-2000
9.Petroleum Products Density Tester DST-3000
10.Distillation Range Tester DIL-201
11.Liquid Phase Corrosion Tester TPS-05
12.Copper Corrosion Tester TP-113
13.Petroleum And Synthetic Liquid Anti-Emulsification Tester TP-122
14.Dew Point Tester DPME-P
15.Vehicle Gear Oil Channel Point Tester Model TP-0030
16.Anti-Corrosive Oil/Grease Salt Spray Corrosion Tester Model TP-0081
17. Mechanical Impurities Tester Model PC-511
18. Air Release Value Tester Model TP-0308
19.Distillate Fuel Oil Oxidation Stability Tester Model TP-175
20. Foam Characteristics Tester Model FC-892
21.Dark Petroleum Products Sulfur Content Tester Model TPC-120
22. Petroleum Products Aniline Point Tester Model TP-262A
23.Petroleum Products Ash Tester Model TP-508
24.Petroleum Products Chroma Tester Model TP-225
25. Automatic Petroleum Products Carbon Residue Tester (Micromethod) CS-0625
26.Spontaneous Ignition Point Tester FP-706
27.Fully Automatic Glassware Washing Machine TP504
28. Lube Oil/Grease Evaporation Loss Tester EL-7325
29. Crude Oil And Fuel Oil Sediment Tester TP-130
30. Wide Temperature Range Lubricating Grease Drop Point Tester TLS-22
31. Crude Oil And Petroleum Products Salt Content Tester SCA-068
32. Petroleum Products Saturated Vapor Pressure Tester(Reid Method) TP-8017
33.Petroleum Products Freezing Point Tester TP-2430
34. Oxygen Bomb Calorimeter TP-1B
35. Existent Gum Tester TP-509A
36.Octane and Hexadecane Value Tester TP-131
37.Automatic Gasoline Oxidation Stability Tester TP-148
38. Light Petroleum Products Sulfur Content Tester (Lamp-Kindled Method) TP-119
39. Resistant oil Chlorine Content Tester TP388
40. Distillate Fuel Mercaptan Sulfur Tester TP-624

flash point tester, flash point testing equipment, automatic flash point tester, oil flash point tester, flash point analyzer, open cup flash point tester, flash point tester, flash point lubricating oil, flash point instrument, flash point meter, flash point tester for oil, testing machine, flash point analyzing, coc flash point tester, flash point measuring equipment, oil flash point test, lubricating oil flash point, closed cup flash point tester, laboratory equipment, flash point test equipment, flash point & fire point apparatus, flash point apparatus, flash point analyzing, lube oil flash point, engine oil flash point, automatic closed cup flash point tester, flash point measuring instrument, flash point and fire point tester, automatic flash point tester device,oil flash point ignition,oil open cup flash point meters, pensky-martens closed cup flash point tester

Send your message to this supplier

* From:
* To:

Ms. Ewha
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Flash Point Analyzer , Closed Cup Flash Point Analyzer , Closed Cup Flash Point Tester
