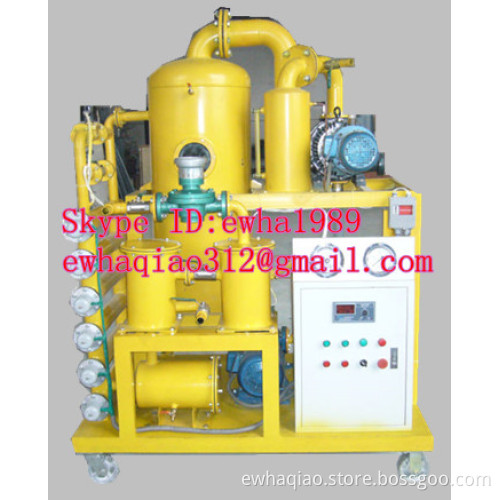

Used Current Transformer Oil Filtration Apparatus with no pollution,fast degas,dewater,vacuum oiling and vacuum drying

Specifications

Used Current Transformer Oil Filtration Apparatus with no pollution,fast degas,dewater,vacuum oiling and vacuum drying

Introduction:

1. The unit is widely used in power plants, power stations, power companies, transforming industries, railways, petrochemical, metallurgical, and other fields.
2. Fast and efficient extrusion of moisture, gas, machinery impurities in the oil, and other harmful substances, improve the insulating oil flash point and breakdown voltage.
3. Suitable for treating used and wasted transformer oil, current transformer oil, circuit breaker oil, capacitor oil, cable oil, high voltage switchgear oil, and other kinds insulating oils.
4. The unit can treat the waste and used insulating fluids online without power failure, stop production, oil change, filter paper change, etc.
5. The unit can be used for the transformer vacuum oiling and for various wet electrical equipments vacuum drying.
TECHNICAL FEATURES:
1. Unique and highly efficient dewatering and degassing device, it adopted a large area three-dimensional flash evaporation and mature film evaporation technology to rapidly remove the free and dissolved water and gases from used and waste insulating oils.
2. Precise filtration system, high quality filter element, multi-stage filtration system levels, can effectively remove the mechanical impurities from the insulating oils.
3. Electrical heating system is the optimized pipeline design to ensure uniform heating and stable oil temperature.
4. Automatic constant temperature control device, automatic liquid level control device, automatic defoaming device, automatic pressure protection device and excellent configuration can ensure the equipments in high performance.
5. Work online and the indicators display running.
6. Unattended operation with low working noise and longtime free maintenance.
7. A complete machine safety interlock protection system, discharge oil system, vacuum system and the heating system interlock, to avoid the adverse effects of misuse.

Our Oil Purifier Advantage:
Comparing with the single-stage vacuum oil purifier,

series ZYD adds ROOTS vacuum system, second stage of separating system to improve the effect of purification

which dewaters, degases and removes impurities more quickly, more completely and make the oils limiting voltage-withstand value much higher.
This machine also can remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.

Series ZYD utilizes coacervation technology, coalescing technology, separating technology and refined purification technology.

Optional Features :

• An exhaust condenser to measure the extracted water
• Condenser is equipped to settle the most volatile oil fractions which might distil back to the column
• Digital temperature measurement
• Digital precision vacuum gauge
• Digital flow meter
• Digital in line moisture content meter
• Ionic reaction columns to remove the acidity from the oil
• Audio / Visual fault annunciation System
• PLC control system
• Mobile Trailers can be provided
• Fully-enclosed and Semi-enclosed for weather-proof are available

After -sales Service

Two years guarantee for product quality. (except man-made damage)

Free training , installation and testing are available

Lifelong maintenance Service

spare parts supply

Technical Parameters:

Series ZYD with Leyblod pump

The recycling process enhances oil quality comprehensively and the dielectric value of recycled oil is above 65KV.

Our oil filtration machine:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series TYB Portable light Fuel oil purification machine
Series TYD Vacuum dehydrator
Series TYF Phosphate ester fire-resistance oil purifier
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series BAM Press filtration system
Series ZKCC Vacuum pumping device
Series COP Cooking oil purification machine
Series CYS Centrifugal oil purification machine
Series JL Portable oil filtering and oiling machine

Our oil tester/ analyzer:
Series IIJ-II Insulating oil breakdown strength tester(oil BDV tester)

Series HTJS-H Insulating oil dielectric tester (dielectric loss tester for insulating oil)

Series HTJS-V Tan-Delta Tester (anti-jamming dielectric loss tester for HV electrical equipment)

Series TP-3A Water content tester/ moisture sensor
Series TPV-8 Viscosity analyzer
Series TPC-2100 Flash point analyzer (close cup)
Series TPO-2100 Flash point analyzer (open cup)
Series CL-3 Interfacial tension analyzer

We supply good quality vacuum dehydrator , oil reclamation , oil conditioner , vacuum oil purifier. Check more detail information about vacuum dehydrator , oil reclamation , oil conditioner , vacuum oil purifier, please feel free to contact us!
