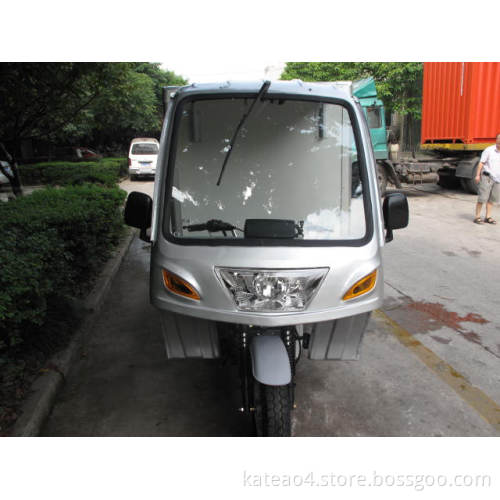

200cc water-cooling tricycle

ENGINE AND TANSMISSION

ENGINE TYPE

200cc,petrol, 4 stroke,single cylinder, water-cooling

ENGINE

Lifan engine 163ml-2

MAXIMUN POWER

12.0kw/8000r/min

MAXIMUN TORQUE

15.0Nm/6000R/min

IGNITION

C.D.I

LUBRICATION

Pressure splash

TRANSMISSION

5 speed

DIFFERENTIAL RATIO

11:37

STARTER

Kick start&electric start

MAX SPEED FULLY LOAD

50km/h in 500kg

MAX SPEED WITHOUT LOAD

60km/h

FINAL DRIVE

Shaft drive

REVERSE

With reverse

FUEL EFFICIENCY KM/LITRE

100km/2L

PARTS AND COMPONENTS

CHASSIS

three-ply

SUSPENSION SYSTEM: FRONT

rocking shaft

REAR

leaf spring and damper

REAR AXLE

fully floating

BRAKE SYSTEM: FRONT WHEEL

drum brake by hand

REAR WHEEL

drum brake by foot

WHEEL TYPE: FRONT

4.50-12

REAR

4.50-12

FRONT SUSPENSION

mechanical

REAR SUSPENSION

Spring steel plate

FRONT SHOCKER

Mechanism

AXLE SPECIFICATION(REAR BRIDGE)

Normal with differential

DIMENSIONS AND CAPACITY

VEHICLE WEIGHT

330kg

LOADING CAPACITY

500kg

Dimension (LXWXH)

3100*1500*1950mm

SEAT HEIGHT

820mm

GROUND CLEARANCE

180mm

DISTANCE BETWEEN AXLES

1950mm

Cargo box

1620*1270*1390mm

FUEL TANK

9L

ELECTRICAL

BATTERY

9Ah/12v

HORN

4w

HEAD LIGHT

35w/12v

TAIL/STOP LAMP

5w/12v

SIDE INDICATOR LAMP

5w/12v

STEERING

handle

CLUTCH

Manual, wet, multiple

PACKING

Package

1680*1400*1300mm

Loading Capacity:40’HQ container in CKD

45

               20’GP container in CKD

14
