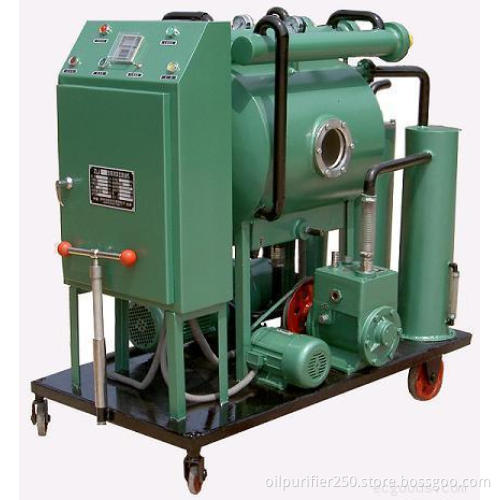

single-stage vacuum insulating oil purifier

single-stage vacuum insulating oil purifier

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 25 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing nk.robine(a)gmail com
Supply Ability:	2800
Certificate:	yes,

Product Description

+86-23-68645071

+86-13193089627
+86-23-68089506

Skype: nakin.robine

Application:

Series ZY vacuum insulating oil purifier, designed for the power station, industrial and mining enterprises purifying the unqualified transformer oil, insulating oil, mutual inductor oil, switch oil and so on., special for improving oil dielectric strength. Also, ZY series can be used for power equipments to vacuum drying, and vacuum oiling. ZY equipped with one-stage vacuum system. ZY series can remove water; trace water, gas, particles from oil quickly and effectively

Main features:

1. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

2. Multi-stage precision filtration system, mesh filtration combined with molecule adsorption technologies

3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.

5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

6. Working with BZ insulating oil regeneration device to discolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.

The ZY machine has single vacuum system, and the temperature is between 20 C and 80C, in this way, the final treated oil in high quality.

Main Technical Parameters:

Index name	Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate	L/H	600	1200	1800	3000	6000	9000	12000	18000
Temperature range	C	20 -80
Working vacuum	MPa	-0.06 - -0.095
Working pressure	MPa	< 0.4
Particles size	um	< 3
Dielectric strength	KV	> 65
Gas content	%	< 0.1
Water Content	ppm	< 5
Power supplier		380v 50Hz,3Ph (As per user's option)
Working noise	dB(A)	≤ 65-85
Heating power	Kw	15	15	15	30	48	60	72	90
Total power	Kw	16.5	16.5	16.5	33.5	53	65	76	98
