Double-stage vacuum transformer oil purifier

Double-stage vacuum transformer oil purifier

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 15 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing nk.robine(a)gmail com
Supply Ability:	1500
Certificate:	CE

Product Description

Application:

n k ( dot ) r o b i n e (at) h o t m a i l ( dot ) c o m

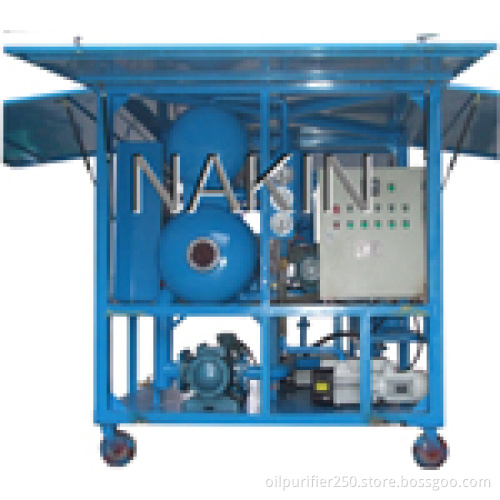

ZYD seriespurifier is specially . ZYD machine equipped with double-stage vacuum system, it can quickly and effectively remove water, trace water, gas, particles as well as acetylene, hydrogen, methane and other harmful ingredients from unqualified insulating oil. ZYD transformer oil purifier is particularly suitable for treating high-grade transformer oil, super-voltage transformer oil and new transformer oil. double-stage transformer oil designed for improving oil's dielectric strength and making sure electric equipments working safely and normally

Main features:

1. Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value < 5Pa

2. Two vacuum separating chambers, efficient oil film sprayer, increasing separating size and separating time to ensure the dry-level and greatly improve dielectric strength.

3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.

7. The ZYD machine adopts advanced technology, the final treated oil can achieve:

Water content less than 3ppm

Particles size less than 1 micrometer

It can be used for filtration of more than 110V substation live line work onsite. Also, ZYD transformer oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling.

Main Technical Parameters:

Index name	unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow rate	L/H	1800	3000	6000	9000	12000	15000	18000
Particles size	μ	< 1
Water content	ppm	< 3
Working pressure	MPa	< 0.4
Temperature range	C	20 - 80
Working noise	dB(A)	<65--85
Working vaccum	MPa	-0.08- -0.099
Gas content	%	< 0.1
Dielectric strength	KV	> 70
Power supply		380V 50HZ 3Ph (As per user's option)
Heating power	Kw	30	30	95	110	125	136	151
Total power	Kw	35.5	37.5	104	121	135	148	168
