mobile transformer oil purifier

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 25 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing nk.robine(a)gmail com
Supply Ability:	3560
Certificate:	yes

Product Description

Application:

n k ( dot ) r o b i n e (at) h o t m a i l ( dot ) c o m

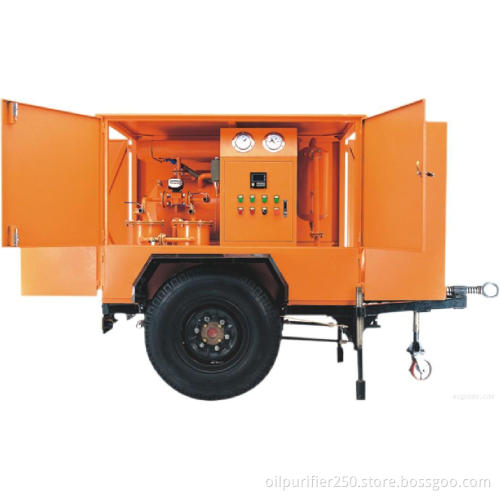

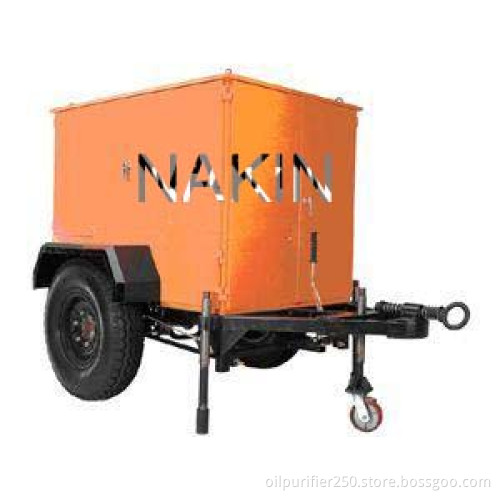

According to customer's requirements, we developed Series ZYM mobile insulating oil purifier, this machine is mainly used for dealing with unqualified transformer oil, switch oil, mutual inductor oil.

Features:

1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.

2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.

3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies

The ZYM machine can be single stage vacuum system, also can be 2 stage vacuum systems.

And if you have special requirements, we can make the machine according to your question.

ZYM machine is very popular, because it is easy to move and can send the oil purifier to some suburban to work. ZYM can work on line.

It can rapidly remove water, gas, particles from unqualified dielectric oil, improving insulating oil's properties. Besides all functions of series ZYD and ZY, the best advantage is that it can move long distance working in field.

Main Technical Parameters:

Index name	Unit	ZYM-30	ZYM-50	ZYM-65	ZYM-100	ZYM-150
Flow rate	L/H	1800	3000	4000	6000	9000
Working vacuum	MPa	-0.08--0.099
Working pressure	MPa	<0.4
Temperature range	C	20 -80
Dielectric strength	KV	> 70
Water content	ppm	< 3
Gas content	%	< 0.1
Particles size	μ	<1
Power supply		380V 50HZ 3Ph (As per user's option)
Working noise	dB(A)	≤65-85
Heating power	Kw	30	30	78	95	110
Total power	Kw	35.5	37.5	87	104	121
