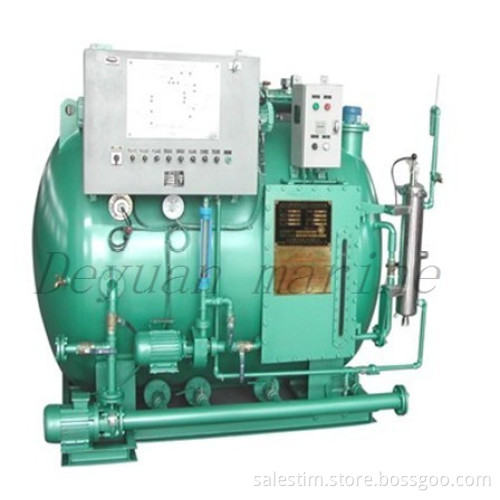

SWCM Sewage treatment plant
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | jiangsu |
|---|
1. Capacity 15~250person
2. Certificate CCS,EC,BV,ABS
3. Product standard
1. Capacity 15~250person
2. Certificate CCS,EC,BV,ABS
3. Product standard IMO MEPC159(55),MARPOL 73/78
This plant is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO MEPC.159（55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called “grey water” on condition that the “grey water” should be pretreated and should select a bigger capacity model to match with.
Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78). The MEPC.2 (VI) resolution adopted on 3 December 1976 is the present guidelines on implementation of effluent standards and performance tests for STP, which is called “old standards”. This device is according to the MEPC.159(55) resolution enacted on 13 October 2006, which is called “new standards”. The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the MEPC.159(55) resolution.
Main Technical Table
|
Model SWCM |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
150 |
200 |
250 |
|||
|
Load |
Average load L/d |
1190 |
1540 |
1890 |
2310 |
3080 |
3780 |
4480 |
6020 |
7700 |
11200 |
14700 |
18200 |
||
|
Peak load L/h |
149 |
193 |
237 |
289 |
385 |
473 |
560 |
753 |
963 |
1400 |
1838 |
2275 |
|||
|
Organic load kgBOD5/d |
0.595 |
0.77 |
0.945 |
1.155 |
1.54 |
1.89 |
2.24 |
3.01 |
3.85 |
5.6 |
7.35 |
9.10 |
|||
|
Rated capacity(P) |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
150 |
200 |
250 |
|||
|
Max capacity(P) |
17 |
22 |
27 |
33 |
44 |
54 |
64 |
86 |
110 |
160 |
210 |
260 |
|||
|
Electricity |
AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ |
||||||||||||||
|
Power(KW) |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
2.0 |
2.0 |
2.5 |
2.5 |
3.0 |
|
||||
|
External dimensions L*W*H(mm) |
1550× 1400× 1600 |
1650× 1400× 1600 |
1850× 1500× 1635 |
1950× 1500× 1635 |
1800× 1700× 1900 |
1900× 1700 1950 |
2100× 1700× 2000 |
2500× 1900× 2150 |
2500× 1900× 2300 |
3150× 2400× 2300 |
|
||||
|
Weight
|
Dry weight (Kg)
|
1150 |
1200 |
1250 |
1350 |
1500 |
1750 |
1950 |
2150 |
2900 |
3800 |
|
|||
|
Wet weight (Kg)
|
2600 |
2933 |
3210 |
3928 |
4689 |
5665 |
6486 |
8100 |
10400 |
14680 |
|
||||
|
Discharge standard |
TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5 |
||||||||||||||
IMO MEPC159(55),MARPOL 73/78
