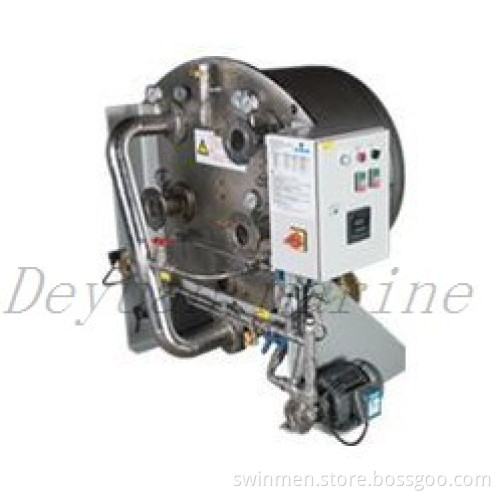

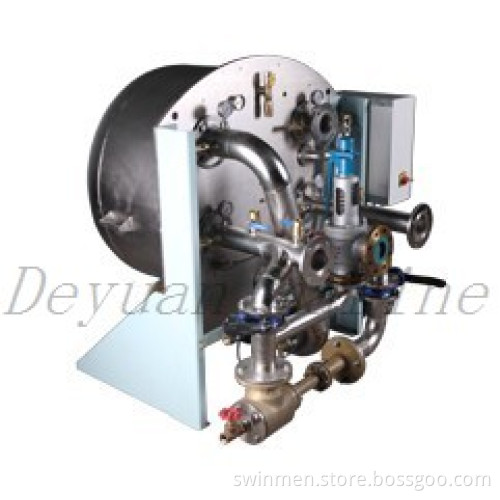

Plate type fresh water generator
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 7 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu |
|---|---|
| Supply Ability: | 30sets/month |
Product Description
Product Description
The FWG-P mainly consist of evaporating and condensing chambers,ejector equipped to achieve vacuum, fresh water pump for delivering distilled water to storage tank,relevant accessories built-in complete unit.
Sea water supply pump is only loose part which will be installed independently in proper position.
Control cabinet with embedded salinity meter directly fitted on the body of the unit and the cabinet also can be arranged separately in where convenient for operation.
Information below for yr reference,we reserve the rights to optimize our design without prior notices.
|
Mode(T/D)
|
FWG-5
|
FWG-10
|
FWG-16
|
FWG-20
|
FWG-30
|
FWG-50
|
|
capacity
|
5
|
10
|
16
|
20
|
30
|
50
|
|
Length(mm)
|
770
|
970
|
970
|
1160
|
1400
|
1400
|
|
Width(mm)
|
600
|
870
|
1150
|
1150
|
1250
|
1450
|
|
Height(m m)
|
960
|
1150
|
1150
|
1415
|
1550
|
1550
|
|
Dry weight(kg)
|
300
|
650
|
900
|
1150
|
1350
|
1450
|
|
Operation weight(kg)
|
350
|
700
|
950
|
1250
|
1450
|
1600
|
