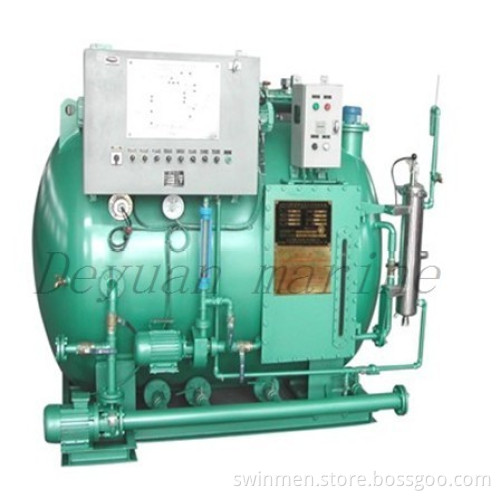

15 person marine sewage treatment plant

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 7 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu
Supply Ability:	30sets/month

Product Description

This plant is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called [black water", to meet the effluent standards of IMO MEPC.159(55), and discharge the effluent to overboard. It is also applicable to treat galley & shower drainage which is called [grey water" on condition that the [grey water" should be pretreated and should sel ect a bigger capacity model to match with.

Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78). The MEPC.2 (VI) resolution adopted on 3 December 1976 is the present guidelines on implementation of effluent standards and performance tests for STP, which is called [old standards". This device is according to the MEPC.159(55) resolution enacted on 13 October 2006, which is called [new standards". The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the MEPC.159(55) resolution.

Main Technical Table

Model SWCM			15	20	25	30	40	50	60	80	100	150	200	250
Load	Average load L/d		1190	1540	1890	2310	3080	3780	4480	6020	7700	11200	14700	18200
	Peak load L/h		149	193	237	289	385	473	560	753	963	1400	1838	2275
	Organic load kgBOD5/d		0.595	0.77	0.945	1.155	1.54	1.89	2.24	3.01	3.85	5.6	7.35	9.10
Rated capacity(P)			15	20	25	30	40	50	60	80	100	150	200	250
Max capacity(P)			17	22	27	33	44	54	64	86	110	160	210	260
Electricity			AC380V, 50HZ, 3/AC 440, 60Hz, 3
Power(KW)			1.5	1.5	1.5	1.5	1.5	2.0	2.0	2.5	2.5	3.0
External dimensions LWH(mm)			1550 1400 1600	1650 1400 1600	1850 1500 1635	1950 1500 1635	1800 1700 1900	1900 1700 1950	2100 1700 2000	2500 1900 2150	2500 1900 2300	3150 2400 2300
Weight		Dry weight (Kg)	1150	1200	1250	1350	1500	1750	1950	2150	2900	3800
Weight		Wet weight (Kg)	2600	2933	3210	3928	4689	5665	6486	8100	10400	14680
Discharge standard			TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5
