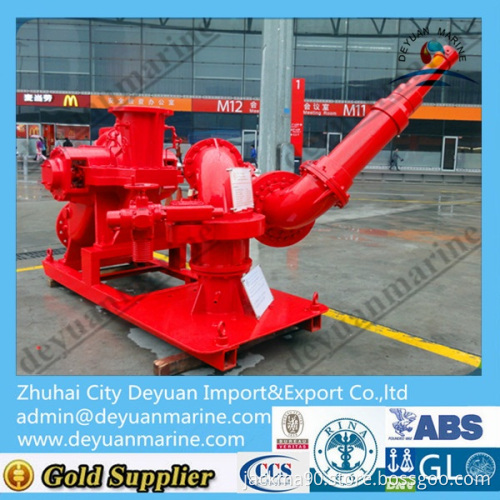

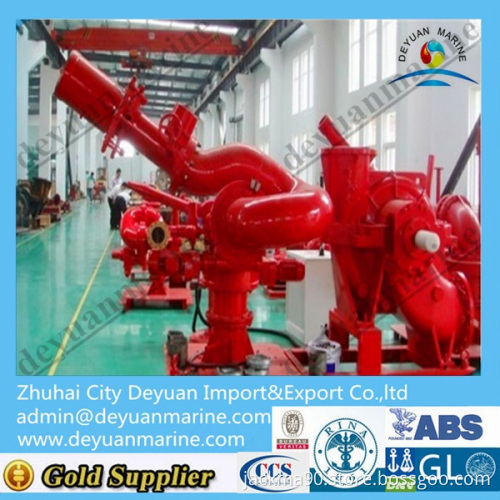

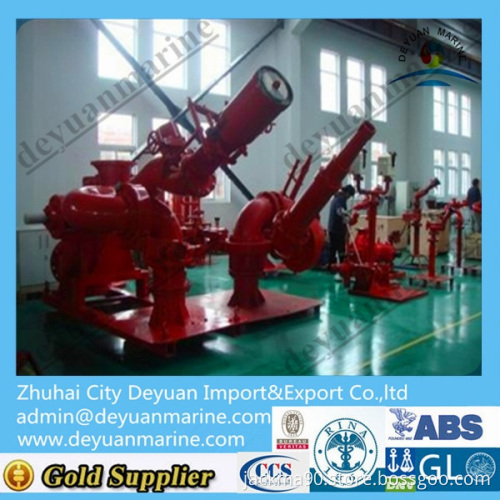

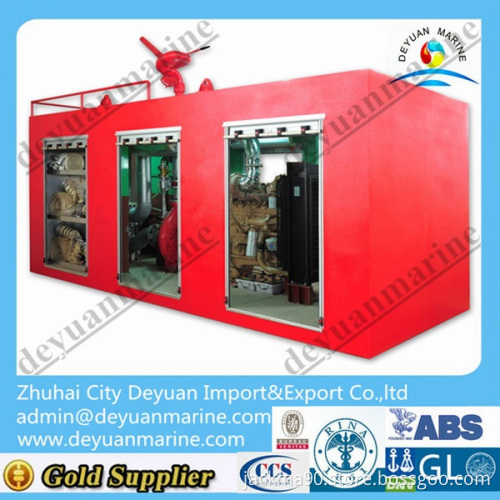

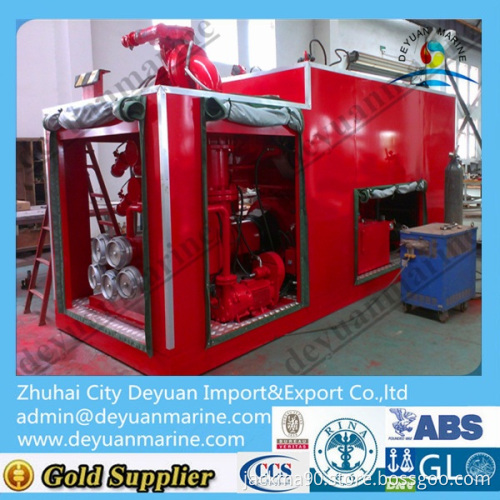

Marine External FIFI System
- Payment Type:
- T/T, L/C
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shanghai |
|---|---|
| Productivity: | 100 |
| Supply Ability: | 10set/month |
| Payment Type: | T/T,L/C |
| Incoterm: | FOB |
| Transportation: | Ocean,Air |
Driven by:Diesel engine. The fire pump and engine will be installed on a common base.
Consisting of:
1) Fire Pump:2 sets
Type: Horizontal, single stage, centrifugal pump
Duty Specified
Capacity: 600 m3/h
Total Head: 130 m L.C.
Speed: 2100 rpm
Power absorbed : 273.6 kW (Seawater)
Efficiency: 80%
Discharge : Top, DN200 PN 25
Suction: End, DN250 PN 16
Direction of rotation: CW (viewing from driver end)
Materials of Construction
Casing: Nodular cast iron
Impeller: Bronze
Shaft : Stainless steel AISI 316
Packing: Soft packed
2)Diesel Engine:2 sets
Engine Model:TBD234V8, China
Type:4 Cycle, 8 Cylinder, electrical start, 24VDC
Rating Type:Heavy Duty
Rated Engine Power:323kw @ 2100 rpm
Direction of rotation:CCW (viewing from driver end)
3) High Flexible Coupling
Mounted between PTO of diesel engine and pump
Final model to be selected by maker.
