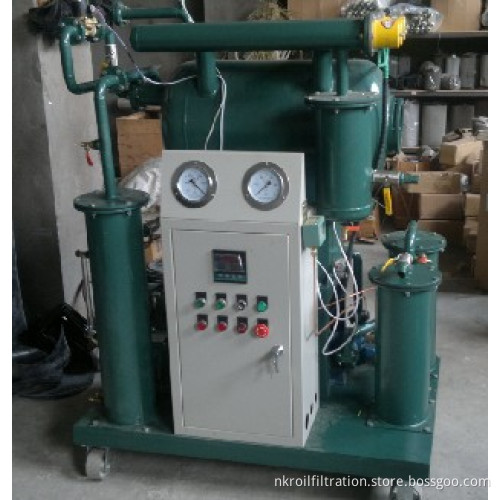

single-stage vacuum insulating oil purifier
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 20 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | chongqing china |
|---|---|
| Supply Ability: | 100 |
| Certificate: | ce |
Application:
Series ZY vacuum insulating oil purifier, designed for the power station, industrial and mining enterprises purifying the unqualified transformer oil, insulating oil, mutual inductor oil, switch oil and so on. ZY equipped with one-stage vacuum system. ZY series can remove water; trace water, gas, particles from oil quickly and effectively, special for improving oil dielectric strength. Also, ZY series can be used for power equipments to vacuum drying, and vacuum oiling.
Main features:
|
1. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil. |
|
2. Multi-stage precision filtration system, mesh filtration combined with molecule adsorption technologies |
|
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable. |
|
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely. |
|
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically. |
|
6. Working with BZ insulating oil regeneration device to discolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity. |
The ZY machine has single vacuum system, and the temperature is between 20 C and 80C, in this way, the final treated oil in high quality.
